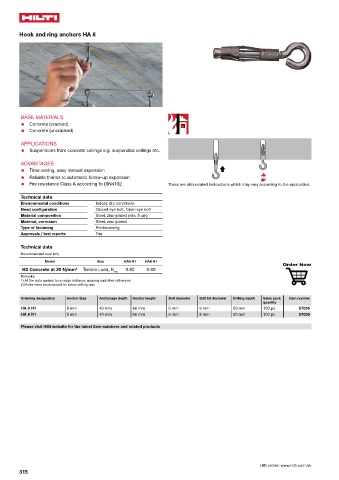

Hook and ring anchors HA 8

BASE MATERIALS
● Concrete (cracked)
● Concrete (uncracked)

APPLICATIONS
● Suspensions from concrete ceilings e.g. suspended ceilings etc.

ADVANTAGES
● Time-saving, easy manual expansion
● Reliable thanks to automatic follow-up expansion
● Fire resistance Class A according to DIN4102 These are abbreviated instructions which may vary according to the application.

Technical data
Environmental conditions Indoor, dry conditions
Head configuration Closed eye bolt, Open eye bolt
Material composition Steel, zinc-plated (min. 5 μm)
Material, corrosion Steel, zinc-plated
Type of fastening Pre-fastening
Approvals / test reports Fire

Technical data
Recommended load (kN)
Model Size HA8 R1 HA8 H1
Order Now
H2 Concrete at 20 N/mm 2 Tensile Load, N 0.80 0.80
rec
Remarks:
1) All the data applies to no edge distance, spacing and other influences
2) Holes must be produced by rotary drilling only
Ordering designation Anchor Size Anchorage depth Anchor length Bolt diameter Drill bit diameter Drilling depth Sales pack Item number
quantity
HA 8 H1 8 mm 40 mm 66 mm 5 mm 8 mm 50 mm 100 pc 57036
HA 8 R1 8 mm 40 mm 66 mm 5 mm 8 mm 50 mm 100 pc 57059
Please visit Hilti website for the latest item numbers and related products

Hilti online: www.hilti.com.hk
