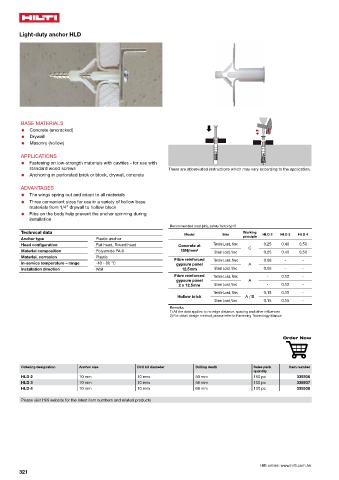

Page 85 - Hilti (HK) – Product Catalogue

Light-duty anchor HLD

BASE MATERIALS
● Concrete (uncracked)
● Drywall
● Masonry (hollow)

APPLICATIONS
● Fastening on low-strength materials with cavities - for use with
standard wood screws These are abbreviated instructions which may vary according to the application.
● Anchoring in perforated brick or block, drywall, concrete

ADVANTAGES
● The wings spring out and adapt to all materials
● Three convenient sizes for use in a variety of hollow base
materials from 1/4” drywall to hollow block
● Ribs on the body help prevent the anchor spinning during
installation
Recommended load (kN), safety factor(γ)=5
Technical data Working
Model Size HLD 2 HLD 3 HLD 4
Anchor type Plastic anchor principle
Head configuration Flat head, Round head Concrete at Tensile Load, Nrec 0.25 0.40 0.50
C
Material composition Polyamide PA 6 15N/mm² Shear Load, Vrec 0.25 0.40 0.50
Material, corrosion Plastic
Fibre reinforced Tensile Load, Nrec 0.06 - -
In-service temperature – range -40 - 80 °C gypsum panel A
Installation direction Wall 12.5mm Shear Load, Vrec 0.06 - -
Fibre reinforced Tensile Load, Nrec - 0.12 -
gypsum panel A
2 x 12.5mm Shear Load, Vrec - 0.12 -
Tensile Load, Nrec 0.15 0.15 -
Hollow brick A / B
Shear Load, Vrec 0.15 0.15 -
Remarks:
1) All the data applies to no edge distance, spacing and other influences
2) For detail design method, please refer to Fastening Technology Manual

Order Now

Ordering designation Anchor size Drill bit diameter Drilling depth Sales pack Item number
quantity
HLD 2 10 mm 10 mm 50 mm 150 pc 335506
HLD 3 10 mm 10 mm 56 mm 100 pc 335507
HLD 4 10 mm 10 mm 66 mm 100 pc 335508
Please visit Hilti website for the latest item numbers and related products

Hilti online: www.hilti.com.hk
321
