CORDLESS SYSTEMS 2

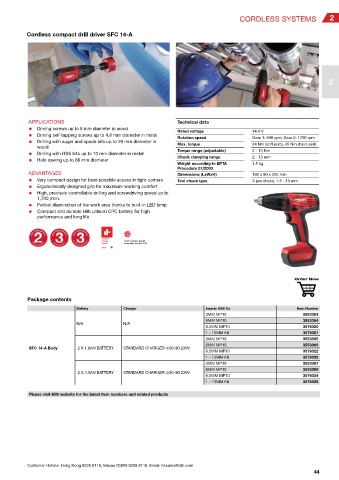

Cordless compact drill driver SFC 14-A
2
APPLICATIONS Technical data
● Driving screws up to 6 mm diameter in wood
Rated voltage 14.4 V
● Driving self-tapping screws up to 4.8 mm diameter in metal
Rotation speed Gear 1: 500 rpm; Gear 2: 1700 rpm
● Drilling with auger and spade bits up to 20 mm diameter in
Max. torque 24 Nm (soft joint), 45 Nm (hard joint)
wood
Torque range (adjustable) 2 - 10 Nm
● Drilling with HSS bits up to 10 mm diameter in metal
Chuck clamping range 2 - 13 mm
● Hole sawing up to 68 mm diameter
Weight according to EPTA 1.5 kg
Procedure 01/2003
ADVANTAGES Dimensions (LxWxH) 192 x 80 x 225 mm
● Very compact design for best-possible access in tight corners Tool chuck type 3-jaw chuck, 1.5 - 13 mm
● Ergonomically designed grip for maximum working comfort
● High, precisely controllable drilling and screwdriving speed up to
1,700 /min.
● Perfect illumination of the work area thanks to built-in LED lamp
● Compact and durable Hilti Lithium CPC battery for high
performance and long life
Order Now
Package contents
Battery Charger Inserts HSS Co Item Number
3MM MP10 3553363
6MM MP10 3553364
N/A N/A
6.5MM MP10 3579320
1 - 13MM Kit 3579321
3MM MP10 3553365
6MM MP10 3553366
SFC 14-A Body 2 X 1.6AH BATTERY STANDARD CHARGER 4/36-90 230V
6.5MM MP10 3579322
1 - 13MM Kit 3579333
3MM MP10 3553367
6MM MP10 3553368
2 X 3.3AH BATTERY STANDARD CHARGER 4/36-90 230V
6.5MM MP10 3579334
1 - 13MM Kit 3579335
Please visit Hilti website for the latest item numbers and related products
