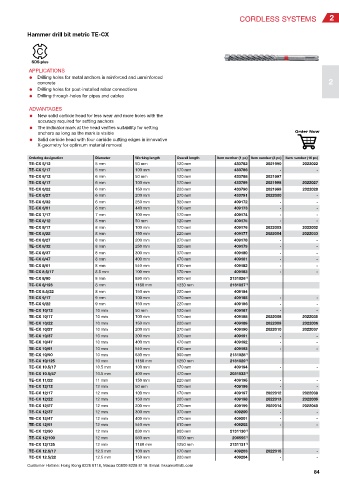

Page 54 - Hilti (HK) – Product Catalogue

CORDLESS SYSTEMS 2

Hammer drill bit metric TE-CX

APPLICATIONS
● Drilling holes for metal anchors in reinforced and unreinforced
concrete 2
● Drilling holes for post-installed rebar connections
● Drilling through-holes for pipes and cables

ADVANTAGES
● New solid carbide head for less wear and more holes with the
accuracy required for setting anchors
● The indicator mark at the head verifies suitability for setting
anchors as long as the mark is visible Order Now
● Solid carbide head with four carbide cutting edges in innovative
X-geometry for optimum material removal
Ordering designation Diameter Working length Overall length Item number (1 pc) Item number (8 pc) Item number (16 pc)
TE-CX 5/12 5 mm 50 mm 120 mm 433782 2021990 2022022
TE-CX 5/17 5 mm 100 mm 170 mm 433786 - -
TE-CX 6/12 6 mm 50 mm 120 mm 433788 2021997
TE-CX 6/17 6 mm 100 mm 170 mm 433789 2021998 2022027
TE-CX 6/22 6 mm 150 mm 220 mm 433790 2021999 2022028
TE-CX 6/27 6 mm 200 mm 270 mm 433791 2022000 -
TE-CX 6/32 6 mm 250 mm 320 mm 409172 - -
TE-CX 6/51 6 mm 440 mm 510 mm 409173 - -
TE-CX 7/17 7 mm 100 mm 170 mm 409174 - -
TE-CX 8/12 8 mm 50 mm 120 mm 409175 - -
TE-CX 8/17 8 mm 100 mm 170 mm 409176 2022003 2022032
TE-CX 8/22 8 mm 150 mm 220 mm 409177 2022004 2022033
TE-CX 8/27 8 mm 200 mm 270 mm 409178 - -
TE-CX 8/32 8 mm 250 mm 320 mm 409179 - -
TE-CX 8/37 8 mm 300 mm 370 mm 409180 - -
TE-CX 8/47 8 mm 400 mm 470 mm 409181 - -
TE-CX 8/61 8 mm 540 mm 610 mm 409182 - -
TE-CX 8,5/17 8.5 mm 100 mm 170 mm 409183 - -
TE-CX 8/90 8 mm 830 mm 900 mm 2131026 1)
TE-CX 8/123 8 mm 1160 mm 1230 mm 2131027 1)
TE-CX 8.5/22 8 mm 150 mm 220 mm 409184
TE-CX 9/17 9 mm 100 mm 170 mm 409185 - -
TE-CX 9/22 9 mm 150 mm 220 mm 409186 - -
TE-CX 10/12 10 mm 50 mm 120 mm 409187 - -
TE-CX 10/17 10 mm 100 mm 170 mm 409188 2022008 2022035
TE-CX 10/22 10 mm 150 mm 220 mm 409189 2022009 2022036
TE-CX 10/27 10 mm 200 mm 270 mm 409190 2022010 2022037
TE-CX 10/37 10 mm 300 mm 370 mm 409191 - -
TE-CX 10/47 10 mm 400 mm 470 mm 409192 - -
TE-CX 10/61 10 mm 540 mm 610 mm 409193 - -
TE-CX 10/90 10 mm 830 mm 900 mm 2131028 1)
TE-CX 10/125 10 mm 1180 mm 1250 mm 2131029 1)
TE-CX 10.5/17 10.5 mm 100 mm 170 mm 409194 - -
TE-CX 10.5/47 10.5 mm 400 mm 470 mm 2031533 1)
TE-CX 11/22 11 mm 150 mm 220 mm 409195 - -
TE-CX 12/12 12 mm 50 mm 120 mm 409196 - -
TE-CX 12/17 12 mm 100 mm 170 mm 409197 2022012 2022038
TE-CX 12/22 12 mm 150 mm 220 mm 409198 2022013 2022039
TE-CX 12/27 12 mm 200 mm 270 mm 409199 2022014 2022040
TE-CX 12/37 12 mm 300 mm 370 mm 409200 - -
TE-CX 12/47 12 mm 400 mm 470 mm 409201 - -
TE-CX 12/61 12 mm 540 mm 610 mm 409202 - -
TE-CX 12/90 12 mm 830 mm 900 mm 2131130 1)
TE-CX 12/100 12 mm 930 mm 1000 mm 206555 1)
TE-CX 12/125 12 mm 1180 mm 1250 mm 2131131 1)
TE-CX 12.5/17 12.5 mm 100 mm 170 mm 409203 2022015 -
TE-CX 12.5/22 12.5 mm 150 mm 220 mm 409204 - -
Customer Hotline: Hong Kong 8228 8118, Macau 00800 8228 8118 Email: hksales@hilti.com
