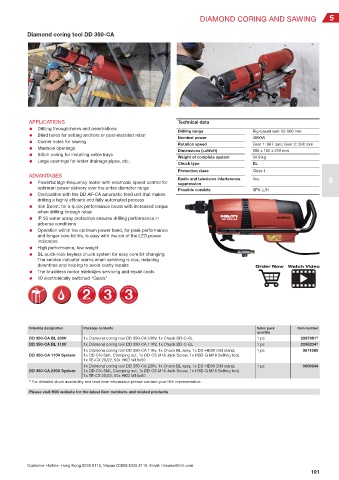

Page 193 - Hilti (HK) – Product Catalogue

DIAMOND CORING AND SAWING 5

Diamond coring tool DD 350-CA

APPLICATIONS Technical data
● Drilling through-holes and penetrations
Drilling range Rig-based wet: 52-500 mm
● Blind holes for setting anchors or post-installed rebar
Nominal power 3600W
● Corner holes for sawing
Rotation speed Gear 1: 667 rpm; Gear 2: 298 rpm
● Manhole openings
Dimensions (LxWxH) 608 x 192 x 216 mm
● Stitch coring for installing cable trays
Weight of complete system 34.9 kg
● Large openings for water drainage pipes, etc.
Chuck type BL
Protection class Class I
ADVANTAGES
Radio and television interference Yes 5
● Powerful high-frequency motor with electronic speed control for suppression
optimum power delivery over the entire diameter range
Possible corebits SPX-L/H
● Compatible with the DD AF-CA automatic feed unit that makes
drilling a highly efficient and fully automated process
● Iron Boost: for a quick performance boost with increased torque
when drilling through rebar
● IP 55 water spray protection ensures drilling performance in
adverse conditions
● Operation within the optimum power band, for peak performance
and longer core bit life, is easy with the aid of the LED power
indicators
● High performance, low weight
● BL quick-lock keyless chuck system for easy core bit changing
The service indicator warns when servicing is due, reducing
downtime and helping to avoid costly repairs Order Now Watch Video
● The brushless motor minimizes servicing and repair costs
● 10 electronically switched “Gears”

Ordering designation Package contents Sales pack Item number
quantity
DD 350-CA BL 230V 1x Diamond coring tool DD 350-CA 230V, 1x Chuck DD-C-BL 1 pc 2087381 1)
DD 350-CA BL 110V 1x Diamond coring tool DD 350-CA 110V, 1x Chuck DD-C-BL 1 pc 2095234 1)
1x Diamond coring tool DD 350-CA 110v, 1x Chuck BL assy, 1x DD-HD30 Drill stand, 1 pc 3611585
DD 350-CA 110V System 1x DD-CN-SML Clamping nut, 1x DD-CS M16 Jack Screw, 1x HSD-G M16 Setting tool,
1x TE-CX 20/22, 50x HKD M16x50
1x Diamond coring tool DD 350-CA 230v, 1x Chuck BL assy, 1x DD-HD30 Drill stand, 1 pc 3600644
DD 350-CA 230V System 1x DD-CN-SML Clamping nut, 1x DD-CS M16 Jack Screw, 1x HSD-G M16 Setting tool,
1x TE-CX 20/22, 50x HKD M16x50
1)
For detailed stock availability and lead time information please contact your Hilti representative.
Please visit Hilti website for the latest item numbers and related products
