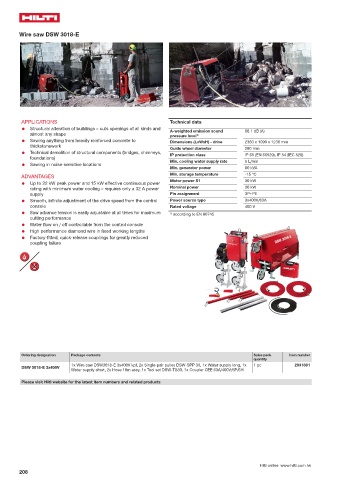

Wire saw DSW 3018-E

APPLICATIONS Technical data
● Structural alteration of buildings – cuts openings of all kinds and
A-weighted emission sound 86.1 dB (A)
almost any shape
pressure level 1)
● Sawing anything from heavily reinforced concrete to Dimensions (LxWxH) - drive 2360 x 1090 x 1230 mm
thickstonework
Guide wheel diameter 280 mm
● Technical demolition of structural components (bridges, chimneys,
IP protection class IP 65 (EN 60529), IP 54 (IEC 529)
foundations)
Min. cooling water supply rate 5 L/min
● Sawing in noise-sensitive locations
Min. generator power 80 kVA
Min. storage temperature -15 °C
ADVANTAGES
Motor power S1 30 kW
● Up to 22 kW peak power and 15 kW effective continuous power
rating with minimum water cooling – requires only a 32 A power Nominal power 30 kW
supply Pin assignment 3P+PE
● Smooth, infinite adjustment of the drive speed from the control Power source type 3x400V/63A
console Rated voltage 400 V
● Saw advance tension is easily adjustable at all times for maximum 1) according to EN 60745
cutting performance
● Water flow on / off controllable from the control console
● High performance diamond wire in fixed working lengths
● Factory-fitted, quick-release couplings for greatly reduced
coupling failure

Ordering designation Package contents Sales pack Item number
quantity
1x Wire saw DSW3018-E 3x400V kpl, 2x Single-pair pulley DSW-SPP 30, 1x Water supply long, 1x 1 pc 2031881
DSW 3018-E 3x400V
Water supply short, 2x Hose 10m assy, 1x Tool set DSW-TS30, 1x Coupler CEE 63A/400V/5P/6H
Please visit Hilti website for the latest item numbers and related products
