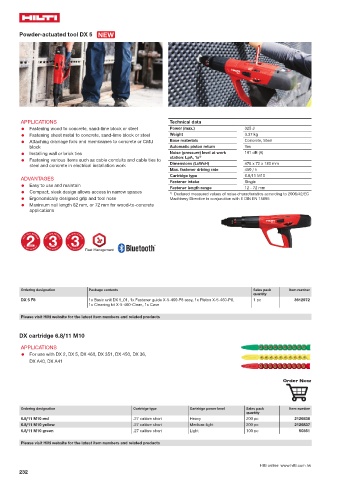

Powder-actuated tool DX 5

APPLICATIONS Technical data
● Fastening wood to concrete, sand-lime block or steel Power (max.) 325 J
● Fastening sheet metal to concrete, sand-lime block or steel Weight 3.37 kg
● Attaching drainage foils and membranes to concrete or CMU Base materials Concrete, Steel
block Automatic piston return Yes
● Installing wall or brick ties Noise (pressure) level at work 101 dB (A)
station: LpA, 1s 1)
● Fastening various items such as cable conduits and cable ties to
Dimensions (LxWxH) 478 x 72 x 180 mm
steel and concrete in electrical installation work
Max. fastener driving rate 450 / h
Cartridge type 6.8/11 M10
ADVANTAGES
Fastener intake Single
● Easy to use and maintain
Fastener length range 12 - 72 mm
● Compact, sleek design allows access in narrow spaces 1) Declared measured values of noise characteristics according to 2006/42/EC
● Ergonomically designed grip and tool nose Machinery Directive in conjunction with E DIN EN 15895
● Maximum nail length 62 mm, or 72 mm for wood-to-concrete
applications

Ordering designation Package contents Sales pack Item number
quantity
DX 5 F8 1x Basic unit DX 5_01, 1x Fastener guide X-5-460-F8 assy, 1x Piston X-5-460-P8, 1 pc 3612972
1x Cleaning kit X-5-460-Clean, 1x Case

Please visit Hilti website for the latest item numbers and related products

DX cartridge 6.8/11 M10

APPLICATIONS
● For use with DX 2, DX 5, DX 460, DX 351, DX 450, DX 36,
DX A40, DX A41

Order Now

Ordering designation Cartridge type Cartridge power level Sales pack Item number
quantity
6.8/11 M10 red .27 calibre short Heavy 200 pc 2126838
6.8/11 M10 yellow .27 calibre short Medium-light 200 pc 2126837
6.8/11 M10 green .27 calibre short Light 100 pc 50351

Please visit Hilti website for the latest item numbers and related products
