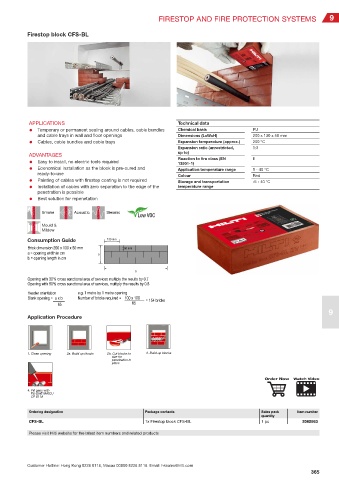

Page 367 - Hilti (HK) – Product Catalogue
P. 367

FIRESTOP AND FIRE PROTECTION SYSTEMS    9


           Firestop block CFS-BL


















           APPLICATIONS                                         Technical data
           ●  Temporary or permanent sealing around cables, cable bundles   Chemical basis  PU
              and cable trays in wall and floor openings        Dimensions (LxWxH)        200 x 130 x 50 mm
           ●  Cables, cable bundles and cable trays             Expansion temperature (approx.)  200 °C
                                                                Expansion ratio (unrestricted,  1:3
                                                                up to)
           ADVANTAGES
                                                                Reaction to fire class (EN  E
           ●  Easy to install, no electric tools required
                                                                13501-1)
           ●  Economical installation as the block is pre-cured and   Application temperature range  5 - 40 °C
              ready-to-use
                                                                Colour                    Red
           ●  Painting of cables with firestop coating is not required  Storage and transportation  -5 - 40 °C
           ●  Installation of cables with zero separation to the edge of the   temperature range
              penetration is possible
           ●  Best solution for repenetation
                Smoke      Acoustic   Siesmic

                Mould &
                Mildew
           Consumption Guide














                                                                                                                    9
           Application Procedure






           1. Clean opening  2a. Build up blocks  2b. Cut blocks to   3. Build up blocks
                                        size for
                                        penetration in
                                        place

                                                                                              Order Now  Watch Video
           4. Fill gaps with
            FS-ONE MAX3 /
            CP 611A

           Ordering designation                     Package contents                         Sales pack   Item number
                                                                                             quantity
           CFS-BL                                   1x Firestop block CFS-BL                 1 pc          2062863

           Please visit Hilti website for the latest item numbers and related products





           Customer Hotline: Hong Kong 8228 8118, Macau 00800 8228 8118  Email: hksales@hilti.com
                                                                                                              365
