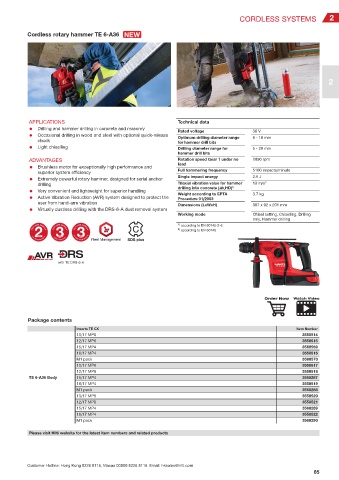

Page 87 - Hilti (HK) – Product Catalogue

CORDLESS SYSTEMS 2

Cordless rotary hammer TE 6-A36

2

APPLICATIONS Technical data
● Drilling and hammer drilling in concrete and masonry
Rated voltage 36 V
● Occasional drilling in wood and steel with optional quick-release
Optimum drilling diameter range 6 - 16 mm
chuck
for hammer drill bits
● Light chiselling Drilling diameter range for 5 - 20 mm
hammer drill bits
ADVANTAGES Rotation speed Gear 1 under no 1050 rpm
load
● Brushless motor for exceptionally high performance and
Full hammering frequency 5100 impacts/minute
superior system efficiency
Single impact energy 2.5 J
● Extremely powerful rotary hammer, designed for serial anchor
drilling Triaxial vibration value for hammer 13 m/s²
drilling into concrete (ah,HD) 1)
● Very convenient and lightweight for superior handling
Weight according to EPTA 3.7 kg
● Active Vibration Reduction (AVR) system designed to protect the Procedure 01/2003
user from hand-arm vibration
Dimensions (LxWxH) 367 x 92 x 201 mm
● Virtually dustless drilling with the DRS-6-A dust removal system
Working mode Chisel setting, Chiselling, Drilling
only, Hammer drilling
1) according to EN 60745-2-6
2)
according to EN 60745
with TE DRS-6-A

Order Now Watch Video

Package contents
Inserts TE CX Item Number
10/17 MP8 3558514
12/17 MP8 3558515
15/17 MP4 3568569
16/17 MP4 3558516
M1 pack 3568570
10/17 MP8 3558517
12/17 MP8 3558518
TE 6-A36 Body 15/17 MP4 3568287
16/17 MP4 3558519
M1 pack 3568288
10/17 MP8 3558520
12/17 MP8 3558521
15/17 MP4 3568289
16/17 MP4 3558522
M1 pack 3568290

Please visit Hilti website for the latest item numbers and related products

Customer Hotline: Hong Kong 8228 8118, Macau 00800 8228 8118 Email: hksales@hilti.com
85
