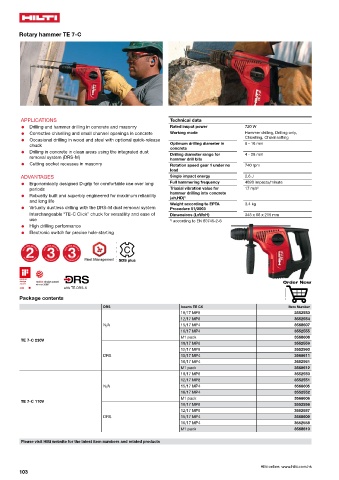

Rotary hammer TE 7-C

APPLICATIONS Technical data
● Drilling and hammer drilling in concrete and masonry Rated inuput power 720 W
● Corrective chiselling and small channel openings in concrete Working mode Hammer drilling, Drilling only,
Chiselling, Chisel setting
● Occasional drilling in wood and steel with optional quick-release
Optimum drilling diameter in 6 - 16 mm
chuck
concrete
● Drilling in concrete in clean areas using the integrated dust
Drilling diameter range for 4 - 28 mm
removal system (DRS-M) hammer drill bits
● Cutting socket recesses in masonry Rotation speed gear 1 under no 740 rpm
load
ADVANTAGES Single impact energy 2.6 J
● Ergonomically designed D-grip for comfortable use over long Full hammering frequency 4020 impacts/minute
periods Triaxial vibration value for 17 m/s²
hammer drilling into concrete
● Robustly built and superbly engineered for maximum reliability
(ah,HD) 1)
and long life
Weight according to EPTA 3.4 kg
● Virtually dustless drilling with the DRS-M dust removal system Procedure 01/2003
Interchangeable “TE-C Click” chuck for versatility and ease of Dimensions (LxWxH) 343 x 86 x 215 mm
use 1) according to EN 60745-2-6
● High drilling performance
● Electronic switch for precise hole-starting

Order Now
with TE-DRS-S
Package contents
DRS Inserts TE CX Item Number
10/17 MP8 3552553
12/17 MP8 3552554
N/A 15/17 MP4 3568607
16/17 MP4 3552555
M1 pack 3568608
TE 7-C 230V
10/17 MP8 3552559
12/17 MP8 3552560
DRS 15/17 MP4 3568611
16/17 MP4 3552561
M1 pack 3568612
10/17 MP8 3552550
12/17 MP8 3552551
N/A 15/17 MP4 3568605
16/17 MP4 3552552
M1 pack 3568606
TE 7-C 110V
10/17 MP8 3552556
12/17 MP8 3552557
DRS 15/17 MP4 3568609
16/17 MP4 3552558
M1 pack 3568610
Please visit Hilti website for the latest item numbers and related products
