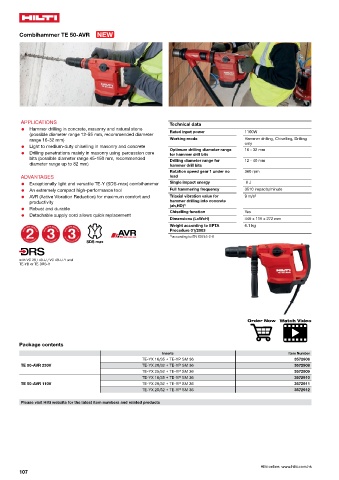

Combihammer TE 50-AVR

APPLICATIONS Technical data
● Hammer drilling in concrete, masonry and natural stone
Rated input power 1100W
(possible diameter range 12-55 mm, recommended diameter
range 16-32 mm) Working mode Hammer drilling, Chiselling, Drilling
only
● Light to medium-duty chiselling in masonry and concrete
Optimum drilling diameter range 16 - 32 mm
● Drilling penetrations mainly in masonry using percussion core for hammer drill bits
bits (possible diameter range 45-150 mm, recommended
Drilling diameter range for 12 - 40 mm
diameter range up to 82 mm) hammer drill bits
Rotation speed gear 1 under no 360 rpm
ADVANTAGES load
● Exceptionally light and versatile TE-Y (SDS-max) combihammer Single impact energy 6 J
● An extremely compact high-performance tool Full hammering frequency 3510 impacts/minute
● AVR (Active Vibration Reduction) for maximum comfort and Triaxial vibration value for 9 m/s²
productivity hammer drilling into concrete
(ah,HD) 1)
● Robust and durable
Chiselling function Yes
● Detachable supply cord allows quick replacement
Dimensions (LxWxH) 449 x 115 x 272 mm
Weight according to EPTA 6.1 kg
Procedure 01/2003
1) according to EN 60745-2-6

with VC 20 / 40-U / VC 40-U-Y and
TE-YD or TE-DRS-Y

Order Now Watch Video

Package contents
Inserts Item Number
TE-YX 16/35 + TE-YP SM 36 3572906
TE 50-AVR 230V TE-YX 20/32 + TE-YP SM 36 3572908
TE-YX 25/52 + TE-YP SM 36 3572909
TE-YX 16/35 + TE-YP SM 36 3572910
TE 50-AVR 110V TE-YX 20/32 + TE-YP SM 36 3572911
TE-YX 25/52 + TE-YP SM 36 3572912

Please visit Hilti website for the latest item numbers and related products
