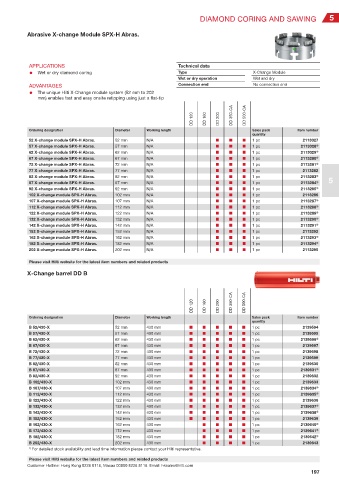

DIAMOND CORING AND SAWING 5

Abrasive X-change Module SPX-H Abras.

APPLICATIONS Technical data
● Wet or dry diamond coring Type X-Change Module
Wet or dry operation Wet and dry
ADVANTAGES Connection end No connection end
● The unique Hilti X-Change module system (52 mm to 202
mm) enables fast and easy onsite retipping using just a flat-tip
screwdriver

DD 120 DD 160 DD 200 DD 350-CA DD 500-CA

Ordering designation Diameter Working length Sales pack Item number
quantity
52 X-change module SPX-H Abras. 52 mm N/A ■ ■ ■ 1 pc 2113027
57 X-change module SPX-H Abras. 57 mm N/A ■ ■ ■ 1 pc 2113028 1)
62 X-change module SPX-H Abras. 62 mm N/A ■ ■ ■ 1 pc 2113029 1)
67 X-change module SPX-H Abras. 67 mm N/A ■ ■ ■ 1 pc 2113280 1)
72 X-change module SPX-H Abras. 72 mm N/A ■ ■ ■ 1 pc 2113281 1)
77 X-change module SPX-H Abras. 77 mm N/A ■ ■ ■ 1 pc 2113282
82 X-change module SPX-H Abras. 82 mm N/A ■ ■ ■ 1 pc 2113283 1)
5
87 X-change module SPX-H Abras. 87 mm N/A ■ ■ ■ 1 pc 2113284 1)
92 X-change module SPX-H Abras. 92 mm N/A ■ ■ ■ 1 pc 2113285 1)
102 X-change module SPX-H Abras. 102 mm N/A ■ ■ ■ 1 pc 2113286
107 X-change module SPX-H Abras. 107 mm N/A ■ ■ ■ 1 pc 2113287 1)
112 X-change module SPX-H Abras. 112 mm N/A ■ ■ ■ 1 pc 2113288 1)
122 X-change module SPX-H Abras. 122 mm N/A ■ ■ ■ 1 pc 2113289 1)
132 X-change module SPX-H Abras. 132 mm N/A ■ ■ ■ 1 pc 2113290 1)
142 X-change module SPX-H Abras. 142 mm N/A ■ ■ ■ 1 pc 2113291 1)
152 X-change module SPX-H Abras. 152 mm N/A ■ ■ ■ 1 pc 2113292
162 X-change module SPX-H Abras. 162 mm N/A ■ ■ ■ 1 pc 2113293 1)
182 X-change module SPX-H Abras. 182 mm N/A ■ ■ ■ 1 pc 2113294 1)
202 X-change module SPX-H Abras. 202 mm N/A ■ ■ ■ 1 pc 2113295

Please visit Hilti website for the latest item numbers and related products

X-Change barrel DD B

DD 120 DD 160 DD 200 DD 350-CA DD 500-CA

Ordering designation Diameter Working length Sales pack Item number
quantity
B 52/430-X 52 mm 430 mm ■ ■ ■ ■ ■ 1 pc 2139594
B 57/430-X 57 mm 430 mm ■ ■ ■ ■ ■ 1 pc 2139595
B 62/430-X 62 mm 430 mm ■ ■ ■ ■ ■ 1 pc 2139596 1)
B 67/430-X 67 mm 430 mm ■ ■ ■ ■ ■ 1 pc 2139597
B 72/430-X 72 mm 430 mm ■ ■ ■ ■ ■ 1 pc 2139598
B 77/430-X 77 mm 430 mm ■ ■ ■ ■ ■ 1 pc 2139599
B 82/430-X 82 mm 430 mm ■ ■ ■ ■ ■ 1 pc 2139630
B 87/430-X 87 mm 430 mm ■ ■ ■ ■ ■ 1 pc 2139631 1)
B 92/430-X 92 mm 430 mm ■ ■ ■ ■ ■ 1 pc 2139632
B 102/430-X 102 mm 430 mm ■ ■ ■ ■ ■ 1 pc 2139633
B 107/430-X 107 mm 430 mm ■ ■ ■ ■ ■ 1 pc 2139634 1)
B 112/430-X 112 mm 430 mm ■ ■ ■ ■ ■ 1 pc 2139635 1)
B 122/430-X 122 mm 430 mm ■ ■ ■ ■ ■ 1 pc 2139636
B 132/430-X 132 mm 430 mm ■ ■ ■ ■ ■ 1 pc 2139637 1)
B 142/430-X 142 mm 430 mm ■ ■ ■ ■ ■ 1 pc 2139638 1)
B 152/430-X 152 mm 430 mm ■ ■ ■ ■ ■ 1 pc 2139639
B 162/430-X 162 mm 430 mm ■ ■ ■ ■ 1 pc 2139640 1)
B 172/430-X 172 mm 430 mm ■ ■ ■ ■ 1 pc 2139641 1)
B 182/430-X 182 mm 430 mm ■ ■ ■ ■ 1 pc 2139642 1)
B 202/430-X 202 mm 430 mm ■ ■ ■ ■ 1 pc 2139643
1)
For detailed stock availability and lead time information please contact your Hilti representative.
Please visit Hilti website for the latest item numbers and related products
