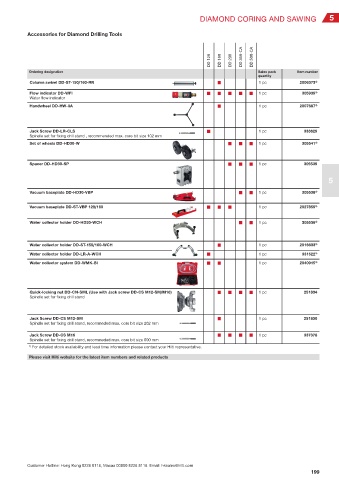

DIAMOND CORING AND SAWING 5

Accessories for Diamond Drilling Tools

DD 120 DD 160 DD 200 DD 350-CA DD 500-CA

Ordering designation Sales pack Item number
quantity
Column swivel DD-ST-150/160-RR ■ 1 pc 2006373 1)
Flow indicator DD-WFI ■ ■ ■ ■ ■ 1 pc 305939 1)
Water flow indicator
Handwheel DD-HW-3A ■ 1 pc 2007687 1)

Jack Screw DD-LR-CLS ■ 1 pc 333629
Spindle set for fixing drill stand , recommended max. core bit size 102 mm
Set of wheels DD-HD30-W ■ ■ ■ 1 pc 305541 1)

Spacer DD-HD30-SP ■ ■ ■ 1 pc 305539

5

Vacuum baseplate DD-HD30-VBP ■ ■ 1 pc 305538 1)

Vacuum baseplate DD-ST-VBP 120/160 ■ ■ ■ 1 pc 2027859 1)

Water collector holder DD-HD30-WCH ■ ■ 1 pc 305536 1)

Water collector holder DD-ST-150/160-WCH ■ 1 pc 2016633 1)
Water collector holder DD-LR-A-WCH ■ 1 pc 331622 1)
Water collector system DD-WMK-BI ■ ■ 1 pc 2040915 1)

Quick-locking nut DD-CN-SML (Use with Jack screw DD-CS M12-SM/M16) ■ ■ ■ ■ 1 pc 251834
Spindle set for fixing drill stand

Jack Screw DD-CS M12-SM ■ 1 pc 251830
Spindle set for fixing drill stand, recommeded max. core bit size 202 mm
Jack Screw DD-CS M16 ■ ■ ■ ■ 1 pc 337378
Spindle set for fixing drill stand, recommeded max. core bit size 600 mm
1)
For detailed stock availability and lead time information please contact your Hilti representative.
Please visit Hilti website for the latest item numbers and related products
