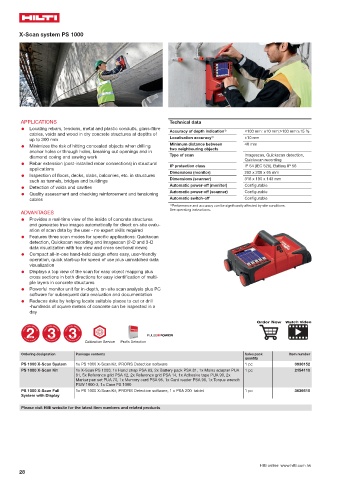

X-Scan system PS 1000

APPLICATIONS Technical data
● Locating rebars, tendons, metal and plastic conduits, glass-fibre
Accuracy of depth indication 1) <100 mm: ±10 mm;>100 mm:±15 %
cables, voids and wood in dry concrete structures at depths of
Localisation accuracy 1) ±10 mm
up to 300 mm
Minimum distance between 40 mm
● Minimizes the risk of hitting concealed objects when drilling
two neighbouring objects
anchor holes or through holes, breaking out openings and in
Type of scan Imagescan, Quickscan detection,
diamond coring and sawing work
Quickscan recording
● Rebar extension (post-installed rebar connections) in structural
IP protection class IP 54 (IEC 529), Battery IP 56
applications
Dimensions (monitor) 292 x 208 x 65 mm
● Inspection of floors, decks, slabs, balconies, etc. in structures
Dimensions (scanner) 318 x 190 x 143 mm
such as tunnels, bridges and buildings
Automatic power-off (monitor) Configurable
● Detection of voids and cavities
Automatic power-off (scanner) Configurable
● Quality assessment and checking reinforcement and tensioning
cables Automatic switch-off Configurable
1) Performance and accuracy can be significantly affected by site conditions.
See operating instructions.
ADVANTAGES
● Provides a real-time view of the inside of concrete structures
and generates true images automatically for direct on-site evalu-
ation of scan data by the user - no expert skills required
● Features three scan modes for specific applications: Quickscan
detection, Quickscan recording and Imagescan (2-D and 3-D
data visualization with top view and cross sectional views)
● Compact all-in-one hand-held design offers easy, user-friendly
operation, quick start-up for speed of use plus unmatched data
visualization
● Displays a top view of the scan for easy object mapping plus
cross sections in both directions for easy identification of multi-
ple layers in concrete structures
● Powerful monitor unit for in-depth, on-site scan analysis plus PC
software for subsequent data evaluation and documentation
● Reduces risks by helping locate suitable places to cut or drill
-hundreds of square metres of concrete can be inspected in a
day
Order Now Watch Video

Profis Detection
Ordering designation Package contents Sales pack Item number
quantity
PS 1000 X-Scan System 1x PS 1000 X-Scan Kit, PROFIS Detection software 1 pc 3636152
PS 1000 X-Scan Kit 1x X-Scan PS 1000, 1x Hand strap PSA 63, 2x Battery pack PSA 81, 1x Mains adapter PUA 1 pc 2154110
81, 5x Reference grid PSA 12, 2x Reference grid PSA 14, 1x Adhesive tape PUA 90, 2x
Marker pen set PUA 70, 1x Memory card PSA 95, 1x Card reader PSA 96, 1x Torque wrench
PSW 1000-3, 1x Case PS 1000
PS 1000 X-Scan Full 1x PS 1000 X-Scan Kit, PROFIS Detection software, 1 x PSA 200 tablet 1 pc 3639510
System with Display

Please visit Hilti website for the latest item numbers and related products
