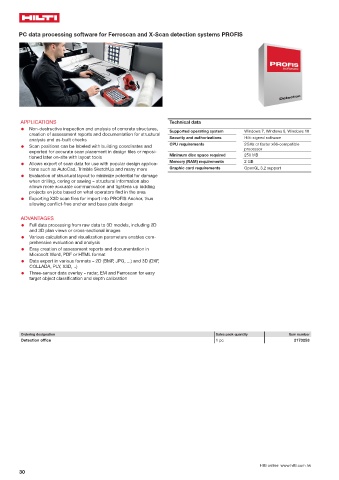

PC data processing software for Ferroscan and X-Scan detection systems PROFIS

APPLICATIONS Technical data
● Non-destructive inspection and analysis of concrete structures,
Supported operating system Windows 7, Windows 8, Windows 10
creation of assessment reports and documentation for structural
Security and authorizations Hilti-signed software
analysis and as-built checks
CPU requirements 2GHz or faster x86-compatible
● Scan positions can be labeled with building coordinates and
processor
exported for accurate scan placement in design files or reposi-
Minimum disc space required 250 MB
tioned later on-site with layout tools
Memory (RAM) requirements 2 GB
● Allows export of scan data for use with popular design applica-
tions such as AutoCad, Trimble SketchUp and many more Graphic card requirements OpenGL 3.2 support
● Evaluation of structural layout to minimize potential for damage
when drilling, coring or sawing – structural information also
allows more accurate communication and tightens up bidding
projects on jobs based on what operators find in the area
● Exporting X3D scan files for import into PROFIS Anchor, thus
allowing conflict-free anchor and base plate design
ADVANTAGES
● Full data processing from raw data to 3D models, including 2D
and 3D plan views or cross-sectional images
● Various calculation and visualization parameters enables com-
prehensive evaluation and analysis
● Easy creation of assessment reports and documentation in
Microsoft Word, PDF or HTML format
● Data export in various formats – 2D (BMP, JPG, ...) and 3D (DXF,
COLLADA, PLY, X3D, ..)
● Three-sensor data overlay – radar, EM and Ferroscan for easy
target object classification and depth calibration

Ordering designation Sales pack quantity Item number
Detection office 1 pc 2173253
