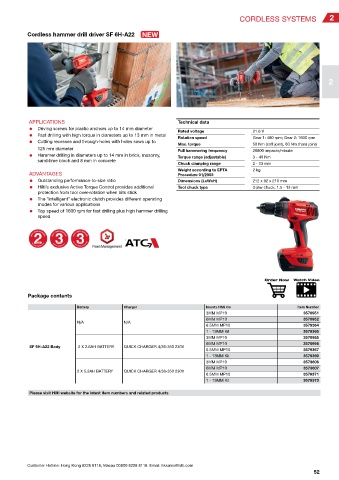

Page 22 - Hilti (HK) – Product Catalogue

CORDLESS SYSTEMS 2

Cordless hammer drill driver SF 6H-A22

2

APPLICATIONS Technical data
● Driving screws for plastic anchors up to 14 mm diameter
Rated voltage 21.6 V
● Fast drilling with high torque in diameters up to 13 mm in metal
Rotation speed Gear 1: 480 rpm; Gear 2: 1600 rpm
● Cutting recesses and through-holes with holes saws up to
Max. torque 50 Nm (soft joint), 80 Nm (hard joint)
125 mm diameter
Full hammering frequency 28800 impacts/minute
● Hammer drilling in diameters up to 14 mm in brick, masonry,
Torque range (adjustable) 3 - 40 Nm
sand-lime block and 8 mm in concrete
Chuck clamping range 2 - 13 mm
Weight according to EPTA 2 kg
ADVANTAGES Procedure 01/2003
● Outstanding performance-to-size ratio Dimensions (LxWxH) 212 x 92 x 210 mm
● Hilti’s exclusive Active Torque Control provides additional Tool chuck type 3-jaw chuck, 1.5 - 13 mm
protection from tool over-rotation when bits stick
● The “intelligent” electronic clutch provides different operating
modes for various applications
● Top speed of 1600 rpm for fast drilling plus high hammer drilling
speed

Order Now Watch Video

Package contents

Battery Charger Inserts HSS Co Item Number
3MM MP10 3570951
6MM MP10 3570952
N/A N/A
6.5MM MP10 3579364
1 - 13MM Kit 3579365
3MM MP10 3570955
6MM MP10 3570956
SF 6H-A22 Body 2 X 2.6AH BATTERY QUICK CHARGER 4/36-350 230V
6.5MM MP10 3579367
1 - 13MM Kit 3579369
3MM MP10 3573606
6MM MP10 3573607
2 X 5.2AH BATTERY QUICK CHARGER 4/36-350 230V
6.5MM MP10 3579371
1 - 13MM Kit 3579373

Please visit Hilti website for the latest item numbers and related products

Customer Hotline: Hong Kong 8228 8118, Macau 00800 8228 8118 Email: hksales@hilti.com
52
