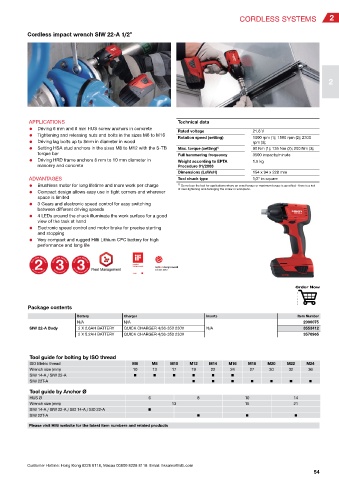

Page 24 - Hilti (HK) – Product Catalogue

CORDLESS SYSTEMS 2

Cordless impact wrench SIW 22-A 1/2"

2

APPLICATIONS Technical data
● Driving 6 mm and 8 mm HUS screw anchors in concrete
Rated voltage 21.6 V
● Tightening and releasing nuts and bolts in the sizes M6 to M16
Rotation speed (setting) 1000 rpm (1); 1500 rpm (2); 2300
● Driving lag bolts up to 8mm in diameter in wood rpm (3);
● Setting HSA stud anchors in the sizes M8 to M12 with the S-TB Max. torque (setting) 1) 90 Nm (1); 135 Nm (2); 200 Nm (3);
torque bar Full hammering frequency 3500 impacts/minute
● Driving HRD frame anchors 8 mm to 10 mm diameter in Weight according to EPTA 1.5 kg
masonry and concrete Procedure 01/2003
Dimensions (LxWxH) 154 x 94 x 228 mm
ADVANTAGES Tool chuck type 1/2" in square
● Brushless motor for long lifetime and more work per charge 1) Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk
of over-tightening and damaging the screw or workpiece.
● Compact design allows easy use in tight corners and wherever
space is limited
● 3 Gears and electronic speed control for easy switching
between different driving speeds
● 4 LEDs around the chuck illuminate the work surface for a good
view of the task at hand
● Electronic speed control and motor brake for precise starting
and stopping
● Very compact and rugged Hilti Lithium CPC battery for high
performance and long life

Order Now

Package contents
Battery Charger Inserts Item Number
N/A N/A 2006075
SIW 22-A Body 2 X 2.6AH BATTERY QUICK CHARGER 4/36-350 230V N/A 3553412
2 X 5.2AH BATTERY QUICK CHARGER 4/36-350 230V 3570965

Please visit Hilti website for the latest item numbers and related products

Customer Hotline: Hong Kong 8228 8118, Macau 00800 8228 8118 Email: hksales@hilti.com
54
