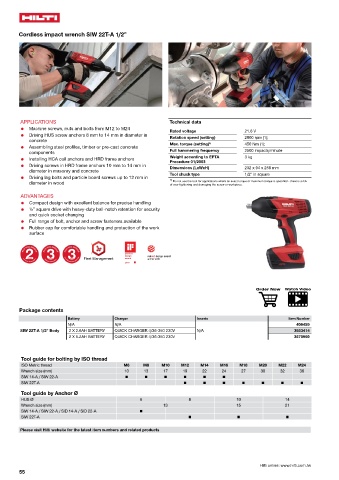

Cordless impact wrench SIW 22T-A 1/2"

APPLICATIONS Technical data
● Machine screws, nuts and bolts from M12 to M24
Rated voltage 21.6 V
● Driving HUS screw anchors 8 mm to 14 mm in diameter in
Rotation speed (setting) 2000 rpm (1);
concrete
Max. torque (setting) 1) 450 Nm (1);
● Assembling steel profiles, timber or pre-cast concrete
Full hammering frequency 2500 impacts/minute
components
Weight according to EPTA 3 kg
● Installing HCA coil anchors and HRD frame anchors
Procedure 01/2003
● Driving screws in HRD frame anchors 10 mm to 14 mm in
Dimensions (LxWxH) 232 x 94 x 258 mm
diameter in masonry and concrete
Tool chuck type 1/2" in square
● Driving lag bolts and particle board screws up to 12 mm in
1) Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk
diameter in wood of over-tightening and damaging the screw or workpiece.
ADVANTAGES
● Compact design with excellent balance for precise handling
● ½” square drive with heavy-duty ball-notch retention for security
and quick socket changing
● Full range of bolt, anchor and screw fasteners available
● Rubber cap for comfortable handling and protection of the work
surface

Order Now Watch Video

Package contents
Battery Charger Inserts Item Number
N/A N/A 409459
SIW 22T-A 1/2" Body 2 X 2.6AH BATTERY QUICK CHARGER 4/36-350 230V N/A 3553414
2 X 5.2AH BATTERY QUICK CHARGER 4/36-350 230V 3570969

Please visit Hilti website for the latest item numbers and related products
