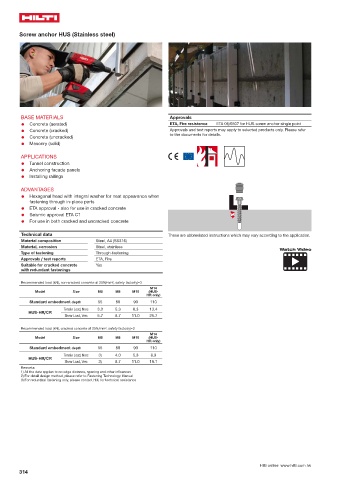

Screw anchor HUS (Stainless steel)

BASE MATERIALS Approvals
● Concrete (aerated) ETA, Fire resistance ETA 08/0307 for HUS screw anchor single point
● Concrete (cracked) Approvals and test reports may apply to selected products only. Please refer
to the documents for details.
● Concrete (uncracked)
● Masonry (solid)

APPLICATIONS
● Tunnel construction
● Anchoring facade panels
● Installing railings

ADVANTAGES
● Hexagonal head with integral washer for neat appearance when
fastening through in-place parts
● ETA approval - also for use in cracked concrete
● Seismic approval ETA C1
● For use in both cracked and uncracked concrete

Technical data These are abbreviated instructions which may vary according to the application.
Material composition Steel, A4 (SS316)
Material, corrosion Steel, stainless
Watch Video
Type of fastening Through-fastening
Approvals / test reports ETA, Fire
Suitable for cracked concrete Yes
with redundant fastenings

Recommended load (kN), non-cracked concrete at 25N/mm², safety factor(γ)=3
M14
Model Size M6 M8 M10 (HUS-
HR only)
Standard embedment depth 55 80 90 110
Tensile Load, Nrec 3.0 5.3 8.3 13.4
HUS-HR/CR
Shear Load, Vrec 5.7 8.7 11.0 25.7
Recommended load (kN), cracked concrete at 25N/mm², safety factor(γ)=3
M14
Model Size M6 M8 M10 (HUS-
HR only)
Standard embedment depth 55 80 90 110
Tensile Load, Nrec 3) 4.0 5.3 8.3
HUS-HR/CR
Shear Load, Vrec 3) 8.7 11.0 19.1
Remarks:
1) All the data applies to no edge distance, spacing and other influences
2) For detail design method, please refer to Fastening Technology Manual
3) For redundant fastening only, please contact Hilti for technical assistance
