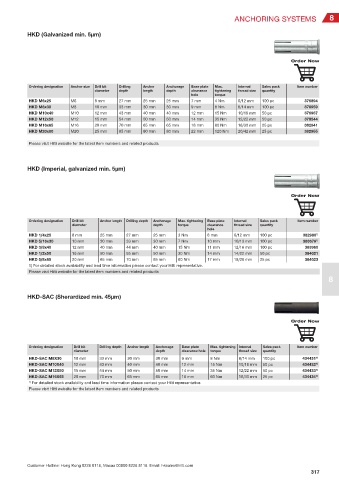

Page 319 - Hilti (HK) – Product Catalogue

ANCHORING SYSTEMS 8

HKD (Galvanized min. 5μm)

Order Now

Ordering designation Anchor size Drill bit Drilling Anchor Anchorage Base plate Max. Internal Sales pack Item number
diameter depth length depth clearance tightening thread size quantity
hole torque
HKD M6x25 M6 8 mm 27 mm 25 mm 25 mm 7 mm 4 Nm 6/12 mm 100 pc 376894
HKD M8x30 M8 10 mm 33 mm 30 mm 30 mm 9 mm 8 Nm 8/14 mm 100 pc 376959
HKD M10x40 M10 12 mm 43 mm 40 mm 40 mm 12 mm 15 Nm 10/18 mm 50 pc 376967
HKD M12x50 M12 15 mm 54 mm 50 mm 50 mm 14 mm 35 Nm 12/22 mm 50 pc 378544
HKD M16x65 M16 20 mm 70 mm 65 mm 65 mm 18 mm 60 Nm 16/30 mm 25 pc 382941
HKD M20x80 M20 25 mm 85 mm 80 mm 80 mm 22 mm 120 Nm 20/42 mm 25 pc 382955

Please visit Hilti website for the latest item numbers and related products

HKD (Imperial, galvanized min. 5μm)

Order Now

Ordering designation Drill bit Anchor length Drilling depth Anchorage Max. tightening Base plate Internal Sales pack Item number
diameter depth torque clearance thread size quantity
hole
HKD 1/4x25 8 mm 25 mm 27 mm 25 mm 3 Nm 8 mm 6/12 mm 100 pc 382980 1)
HKD 5/16x30 10 mm 30 mm 33 mm 30 mm 7 Nm 10 mm 10/13 mm 100 pc 383679 1)
HKD 3/8x40 12 mm 40 mm 44 mm 40 mm 15 Nm 11 mm 12/16 mm 100 pc 383960
HKD 1/2x50 16 mm 50 mm 55 mm 50 mm 30 Nm 14 mm 14/22 mm 50 pc 384021
HKD 5/8x65 20 mm 65 mm 70 mm 65 mm 60 Nm 17 mm 18/28 mm 25 pc 384023
1) For detailed stock availability and lead time information please contact your Hilti representative.
Please visit Hilti website for the latest item numbers and related products
8

HKD-SAC (Sherardized min. 45μm)

Order Now

Ordering designation Drill bit Drilling depth Anchor length Anchorage Base plate Max. tightening Internal Sales pack Item number
diameter depth clearance hole torque thread size quantity
HKD-SAC M8X30 10 mm 33 mm 30 mm 30 mm 9 mm 8 Nm 8/14 mm 100 pc 434431 1)
HKD-SAC M10X40 12 mm 43 mm 40 mm 40 mm 12 mm 15 Nm 10/18 mm 50 pc 434432 1)
HKD-SAC M12X50 15 mm 54 mm 50 mm 50 mm 14 mm 35 Nm 12/22 mm 50 pc 434433 1)
HKD-SAC M16X65 20 mm 70 mm 65 mm 65 mm 18 mm 60 Nm 16/30 mm 25 pc 434434 1)
1) For detailed stock availability and lead time information please contact your Hilti representative.
Please visit Hilti website for the latest item numbers and related products
