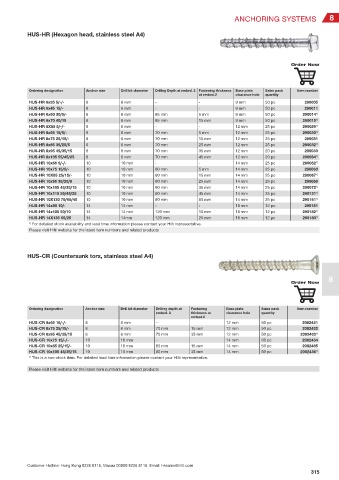

Page 317 - Hilti (HK) – Product Catalogue

ANCHORING SYSTEMS 8

HUS-HR (Hexagon head, stainless steel A4)

Order Now

Ordering designation Anchor size Drill bit diameter Drilling Depth at embed. 2 Fastening thickness Base plate Sales pack Item number
at embed.2 clearance hole quantity
HUS-HR 6x35 5/-/- 6 6 mm - - 9 mm 50 pc 290005
HUS-HR 6x45 15/- 6 6 mm - - 9 mm 50 pc 290011
HUS-HR 6x60 30/5/- 6 6 mm 65 mm 5 mm 9 mm 50 pc 290014 1)
HUS-HR 6x70 40/15 6 6 mm 65 mm 15 mm 9 mm 50 pc 290015 1)
HUS-HR 8X55 5/-/- 8 8 mm - - 12 mm 25 pc 290029 1)
HUS-HR 8x65 15/5/- 8 8 mm 70 mm 5 mm 12 mm 25 pc 290030 1)
HUS-HR 8x75 25/15/- 8 8 mm 70 mm 15 mm 12 mm 25 pc 290031
HUS-HR 8x85 35/25/5 8 8 mm 70 mm 25 mm 12 mm 25 pc 290032 1)
HUS-HR 8x95 45/35/15 8 8 mm 70 mm 35 mm 12 mm 20 pc 290033
HUS-HR 8x105 55/45/25 8 8 mm 70 mm 45 mm 12 mm 20 pc 290034 1)
HUS-HR 10x65 5/-/- 10 10 mm - - 14 mm 25 pc 290062 1)
HUS-HR 10x75 15/5/- 10 10 mm 80 mm 5 mm 14 mm 25 pc 290063
HUS-HR 10X85 25/15/- 10 10 mm 80 mm 15 mm 14 mm 25 pc 290067 1)
HUS-HR 10x95 35/25/5 10 10 mm 80 mm 25 mm 14 mm 25 pc 290068
HUS-HR 10x105 45/35/15 10 10 mm 80 mm 35 mm 14 mm 25 pc 290072 1)
HUS-HR 10x115 55/45/25 10 10 mm 80 mm 45 mm 14 mm 25 pc 290131 1)
HUS-HR 10X130 70/60/40 10 10 mm 80 mm 60 mm 14 mm 25 pc 290161 1)
HUS-HR 14x80 10/- 14 14 mm - - 18 mm 12 pc 290181
HUS-HR 14x120 50/10 14 14 mm 120 mm 10 mm 18 mm 12 pc 290182 1)
HUS-HR 14X135 65/25 14 14mm 120 mm 25 mm 18 mm 12 pc 290183 1)
1) For detailed stock availability and lead time information please contact your Hilti representative.
Please visit Hilti website for the latest item numbers and related products

HUS-CR (Countersunk torx, stainless steel A4)

8
Order Now

Ordering designation Anchor size Drill bit diameter Drilling depth at Fastening Base plate Sales pack Item number
embed. 2 thickness at clearance hole quantity
embed.2
HUS-CR 8x65 15/-/- 8 8 mm -- 12 mm 50 pc 2082431
HUS-CR 8x75 25/15/- 8 8 mm 70 mm 15 mm 12 mm 50 pc 2082432
HUS-CR 8x95 45/35/15 8 8 mm 70 mm 35 mm 12 mm 50 pc 2082433 1)
HUS-CR 10x75 15/-/- 10 10 mm -- 14 mm 50 pc 2082434
HUS-CR 10x85 25/15/- 10 10 mm 80 mm 15 mm 14 mm 50 pc 2082435
HUS-CR 10x105 45/35/15 10 10 mm 80 mm 35 mm 14 mm 50 pc 2082436 1)
1) This is a non-stock item. For detailed lead time information please contact your Hilti representative.

Please visit Hilti website for the latest item numbers and related products
