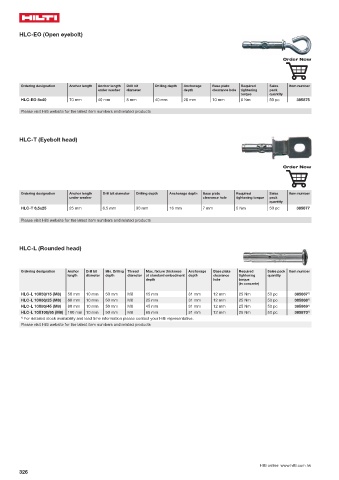

P. 328
HLC-EO (Open eyebolt)
Order Now
Ordering designation Anchor length Anchor length Drill bit Drilling depth Anchorage Base plate Required Sales Item number
under washer diameter depth clearance hole tightening pack
torque quantity
HLC-EO 8x40 70 mm 40 mm 8 mm 40 mm 26 mm 10 mm 8 Nm 50 pc 385875
Please visit Hilti website for the latest item numbers and related products
HLC-T (Eyebolt head)
Order Now
Ordering designation Anchor length Drill bit diameter Drilling depth Anchorage depth Base plate Required Sales Item number
under washer clearance hole tightening torque pack
quantity
HLC-T 6,5x25 25 mm 6.5 mm 30 mm 16 mm 7 mm 5 Nm 50 pc 385877
Please visit Hilti website for the latest item numbers and related products
HLC-L (Rounded head)
Ordering designation Anchor Drill bit Min. Drilling Thread Max. fixture thickness Anchorage Base plate Required Sales pack Item number
length diameter depth diameter at standard embedment depth clearance tightening quantity
depth hole torque
(in concrete)
HLC-L 10X50/15 (M8) 50 mm 10 mm 50 mm M8 15 mm 31 mm 12 mm 25 Nm 50 pc 385867 1)
HLC-L 10X60/25 (M8) 60 mm 10 mm 50 mm M8 25 mm 31 mm 12 mm 25 Nm 50 pc 385868 1)
HLC-L 10X80/45 (M8) 80 mm 10 mm 50 mm M8 45 mm 31 mm 12 mm 25 Nm 50 pc 385869 1)
HLC-L 10X100/65 (M8) 100 mm 10 mm 50 mm M8 65 mm 31 mm 12 mm 25 Nm 50 pc 385870 1)
1)
For detailed stock availability and lead time information please contact your Hilti representative.
Please visit Hilti website for the latest item numbers and related products
