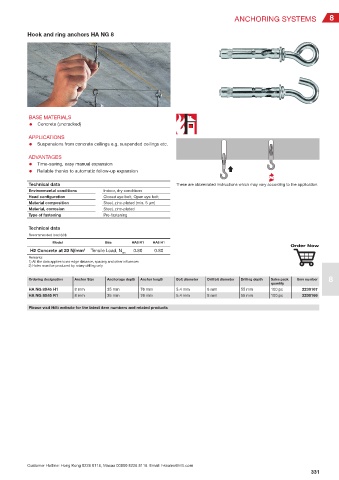

ANCHORING SYSTEMS 8

Hook and ring anchors HA NG 8

BASE MATERIALS
● Concrete (uncracked)

APPLICATIONS
● Suspensions from concrete ceilings e.g. suspended ceilings etc.

ADVANTAGES
● Time-saving, easy manual expansion
● Reliable thanks to automatic follow-up expansion

Technical data These are abbreviated instructions which may vary according to the application.
Environmental conditions Indoor, dry conditions
Head configuration Closed eye bolt, Open eye bolt
Material composition Steel, zinc-plated (min. 5 μm)
Material, corrosion Steel, zinc-plated
Type of fastening Pre-fastening

Technical data
Recommended load (kN)
Model Size HA8 R1 HA8 H1
Order Now
H2 Concrete at 20 N/mm 2 Tensile Load, N 0.80 0.80
rec
Remarks:
1) All the data applies to no edge distance, spacing and other influences
2) Holes must be produced by rotary drilling only
8
Ordering designation Anchor Size Anchorage depth Anchor length Bolt diameter Drill bit diameter Drilling depth Sales pack Item number
quantity
HA NG 8X45 H1 8 mm 35 mm 76 mm 5.4 mm 8 mm 55 mm 100 pc 2230167
HA NG 8X45 R1 8 mm 35 mm 76 mm 5.4 mm 8 mm 55 mm 100 pc 2230166
Please visit Hilti website for the latest item numbers and related products
