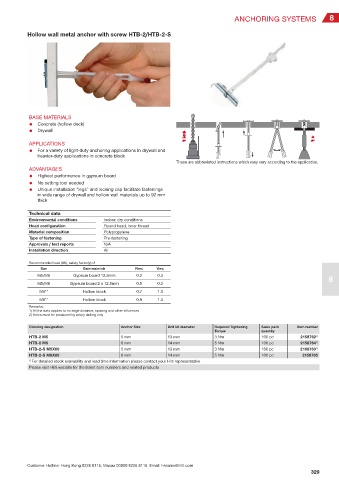

Page 331 - Hilti (HK) – Product Catalogue

ANCHORING SYSTEMS 8

Hollow wall metal anchor with screw HTB-2/HTB-2-S

BASE MATERIALS
● Concrete (hollow deck)
● Drywall

APPLICATIONS
● For a variety of light-duty anchoring applications in drywall and
heavier-duty applications in concrete block
These are abbreviated instructions which may vary according to the application.
ADVANTAGES
● Highest performance in gypsum board
● No setting tool needed
● Unique installation “legs” and locking cap facilitate fastenings
in wide range of drywall and hollow wall materials up to 92 mm
thick
Technical data
Environmental conditions Indoor, dry conditions
Head configuration Round head, Inner thread
Material composition Polypropylene
Type of fastening Pre-fastening
Approvals / test reports N/A
Installation direction All

Recommended load (kN), safety factor(γ)=3
Size Base materials Nrec Vrec
M5/M6 Gypsum board 12.5mm 0.2 0.3
8
M5/M6 Gypsum board 2 x 12.5mm 0.5 0.3
M5** Hollow block 0.7 1.0
M6** Hollow block 0.9 1.3
Remarks:
1) All the data applies to no edge distance, spacing and other influences
2) Holes must be produced by rotary drilling only
Ordering designation Anchor Size Drill bit diameter Required Tightening Sales pack Item number
Torque quantity
HTB-2 M5 5 mm 13 mm 3 Nm 100 pc 2158762 1)
HTB-2 M6 6 mm 14 mm 5 Nm 100 pc 2158764 1)
HTB-2-S M5X60 5 mm 13 mm 3 Nm 100 pc 2158763 1)
HTB-2-S M6X60 6 mm 14 mm 5 Nm 100 pc 2158765
For detailed stock availability and lead time information please contact your Hilti representative.
1)
Please visit Hilti website for the latest item numbers and related products
