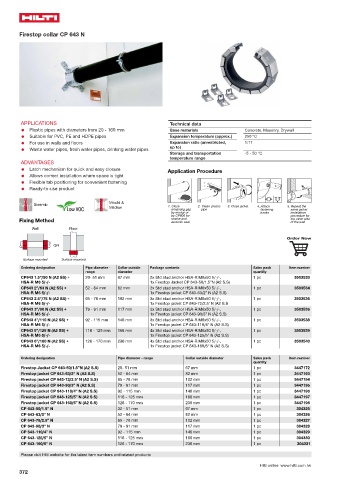

Page 374 - Hilti (HK) – Product Catalogue

Firestop collar CP 643 N

APPLICATIONS Technical data
● Plastic pipes with diameters from 20 - 160 mm Base materials Concrete, Masonry, Drywall
● Suitable for PVC, PE and HDPE pipes Expansion temperature (approx.) 250 °C
● For use in walls and floors Expansion ratio (unrestricted, 1:17
up to)
● Waste water pipes, fresh water pipes, drinking water pipes
Storage and transportation -5 - 50 °C
temperature range
ADVANTAGES
● Latch mechanism for quick and easy closure
Application Procedure
● Allows correct installation where space is tight
● Flexible tab positioning for convenient fastening
● Ready-to-use product

Mould &
Siesmic
Mildew 1. Close 2. Clean plastic 3. Close jacket 4. Attach 5. Repeat the
remaining gap pipe fastening same jacket
by mortar or hooks installation
by CP606 for procedure for
Fixing Method smoke and the other side
acoustic seal
of the wall
Wall Floor
Order Now
OR
Surface mounted Surface mounted
Ordering designation Pipe diameter - Collar outside Package contents Sales pack Item number
range diameter quantity
CP643 1.5”/50 N (A2 SS) + 20- 51 mm 67 mm 2x Std stud anchor HSA-R M6x50 5/-/-, 1 pc 3503533
HSA-R M6 5/-/- 1x Firestop Jacket CP 643-50/1.5”N (A2 S.S)
CP643 2”/63 N (A2 SS) + 52 - 64 mm 82 mm 2x Std stud anchor HSA-R M6x50 5/-/-, 1 pc 3503534
HSA-R M6 5/-/- 1x Firestop jacket CP 643-63/2” N (A2 S.S)
CP643 2.5”/75 N (A2 SS) + 65 - 78 mm 102 mm 3x Std stud anchor HSA-R M6x50 5/-/-, 1 pc 3503535
HSA-R M6 5/-/- 1x Firestop jacket CP 643-72/2.5’ N (A2 S.S
CP643 3”/90 N (A2 SS) + 79 - 91 mm 117 mm 3x Std stud anchor HSA-R M6x50 5/-/-, 1 pc 3503536
HSA-R M6 5/-/- 1x Firestop jacket CP 643-90/3” N (A2 S.S)
CP643 4”/110 N (A2 SS) + 92 - 115 mm 146 mm 3x Std stud anchor HSA-R M6x50 5/-/-, 1 pc 3503538
HSA-R M6 5/-/- 1x Firestop jacket CP 643-110/4” N (A2 S.S)
CP643 5”/125 N (A2 SS) + 116 - 125 mm 166 mm 4x Std stud anchor HSA-R M6x50 5/-/-, 1 pc 3503539
HSA-R M6 5/-/- 1x Firestop jacket CP 643-125/5” N (A2 S.S)
CP643 6”/160 N (A2 SS) + 126 - 170 mm 236 mm 4x Std stud anchor HSA-R M6x50 5/-/-, 1 pc 3503540
HSA-R M6 5/-/- 1x Firestop jacket CP 643-160/6” N (A2 S.S)
Ordering designation Pipe diameter - range Collar outside diameter Sales pack Item number
quantity
Firestop Jacket CP 643-50/1.5”N (A2 S.S) 20- 51 mm 67 mm 1 pc 3447172
Firestop jacket CP 643-63/2” N (A2 S.S) 52 - 64 mm 82 mm 1 pc 3447193
Firestop jacket CP 643-72/2.5’ N (A2 S.S) 65 - 78 mm 102 mm 1 pc 3447194
Firestop jacket CP 643-90/3” N (A2 S.S) 79 - 91 mm 117 mm 1 pc 3447195
Firestop jacket CP 643-110/4” N (A2 S.S) 92 - 115 mm 146 mm 1 pc 3447196
Firestop jacket CP 643-125/5” N (A2 S.S) 116 - 125 mm 166 mm 1 pc 3447197
Firestop jacket CP 643-160/6” N (A2 S.S) 126 - 170 mm 236 mm 1 pc 3447198
CP 643-50/1.5” N 32 - 51 mm 67 mm 1 pc 304325
CP 643-63/2” N 52 - 64 mm 82 mm 1 pc 304326
CP 643-75/2.5” N 65 - 78 mm 102 mm 1 pc 304327
CP 643-90/3” N 79 - 91 mm 117 mm 1 pc 304328
CP 643-110/4” N 92 - 115 mm 146 mm 1 pc 304329
CP 643-125/5” N 116 - 125 mm 166 mm 1 pc 304330
CP 643-160/6” N 126 - 170 mm 236 mm 1 pc 304331
Please visit Hilti website for the latest item numbers and related products

Hilti online: www.hilti.com.hk
