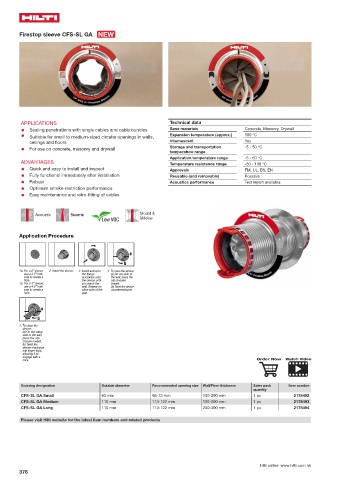

Firestop sleeve CFS-SL GA

APPLICATIONS Technical data
● Sealing penetrations with single cables and cable bundles Base materials Concrete, Masonry, Drywall
● Suitable for small to medium-sized circular openings in walls, Expansion temperature (approx.) 160 °C
ceilings and floors Intumescent Yes
Storage and transportation -5 - 50 °C
● For use on concrete, masonry and drywall
temperature range
Application temperature range -5 - 50 °C
ADVANTAGES
Temperature resistance range -30 - 100 °C
● Quick and easy to install and inspect Approvals FM, UL, BS, EN
● Fully functional immediately after installation Reusable (and removable) Possible
● Robust Acoustics performance Test report available
● Optimum smoke-restriction performance
● Easy maintenance and retro-fitting of cables

Mould &
Acoustic Siesmic
Mildew

Application Procedure

3.
1a. For a 2“ sleeve: 2. Insert the sleeve. 4. Insert and spin 4.
5. To open the device:
use a 2.5” hole the flange (a) On one side of
saw to create a clockwise onto the wall, press the
hole. the device until clip closures
1b. For a 4“ sleeve: you reach the inward.
use a 4.5” hole wall. Repeat on (b) Twist the device
saw to create a other side of the counterclockwise.
hole. wall.

6. To close the
5.
device:
(a) On the same
side of the wall,
press the clip
closure inward.
(b) Twist the
device clockwise
intil finger-tight,
allowing it to
engage with a
click. Order Now Watch Video
Ordering designation Outside diameter Recommended opening size Wall/Floor thickness Sales pack Item number
quantity
CFS-SL GA Small 63 mm 66-73 mm 100-200 mm 1 pc 2178492
CFS-SL GA Medium 110 mm 113-122 mm 100-200 mm 1 pc 2178493
CFS-SL GA Long 110 mm 113-122 mm 200-300 mm 1 pc 2178494

Please visit Hilti website for the latest item numbers and related products
