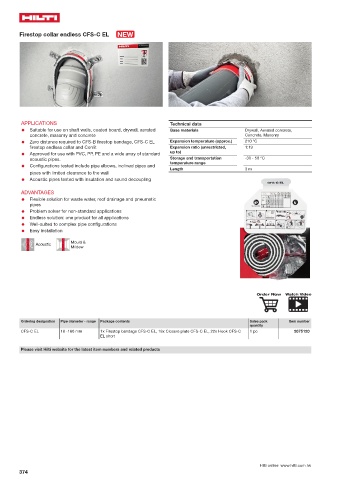

Firestop collar endless CFS-C EL

APPLICATIONS Technical data
● Suitable for use on shaft walls, coated board, drywall, aerated Base materials Drywall, Aerated concrete,
concrete, masonry and concrete Concrete, Masonry
● Zero distance required to CFS-B firestop bandage, CFS-C EL Expansion temperature (approx.) 210 °C
firestop endless collar and Conlit Expansion ratio (unrestricted, 1:19
up to)
● Approved for use with PVC, PP, PE and a wide array of standard
acoustic pipes. Storage and transportation -30 - 50 °C
temperature range
● Configurations tested include pipe elbows, inclined pipes and
Length 3 m
pipes with limited clearance to the wall
● Acoustic pipes tested with insulation and sound decoupling
ADVANTAGES
● Flexible solution for waste water, roof drainage and pneumatic
pipes
● Problem solver for non-standard applications
● Endless solution: one product for all applications
● Well-suited to complex pipe configurations
● Easy installation

Mould &
Acoustic
Mildew
Application Procedure

Order Now Watch Video
1. Clean opening 2. Cushion 3. Cushion 4. Fasten wire
arrangement arrangement mesh in place
without cables in wall with cables in wall when closing
floor openings
with cushions
Aus-
f¸hrungsschild
Ordering designation Pipe diameter - range Package contents Sales pack Item number
quantity
CFS-C EL 16 -160 mm 1x Firestop bandage CFS-C EL, 18x Closure plate CFS-C EL, 22x Hook CFS-C 1 pc 2075120
5. Cushion 6. Fasten installation
arrangement plate in place (If EL short
in floor required)
Please visit Hilti website for the latest item numbers and related products
