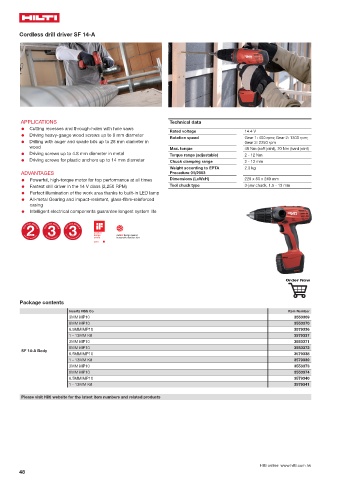

Page 50 - Hilti (HK) – Product Catalogue

Cordless drill driver SF 14-A

APPLICATIONS Technical data
● Cutting recesses and through-holes with hole saws
Rated voltage 14.4 V
● Driving heavy-gauge wood screws up to 8 mm diameter
Rotation speed Gear 1: 400 rpm; Gear 2: 1300 rpm;
● Drilling with auger and spade bits up to 28 mm diameter in Gear 3: 2250 rpm
wood Max. torque 40 Nm (soft joint), 70 Nm (hard joint)
● Driving screws up to 4.8 mm diameter in metal Torque range (adjustable) 2 - 12 Nm
● Driving screws for plastic anchors up to 14 mm diameter
Chuck clamping range 2 - 13 mm
Weight according to EPTA 2.3 kg
ADVANTAGES Procedure 01/2003
● Powerful, high-torque motor for top performance at all times Dimensions (LxWxH) 229 x 80 x 249 mm
● Fastest drill driver in the 14 V class (2,250 RPM) Tool chuck type 3-jaw chuck, 1.5 - 13 mm
● Perfect illumination of the work area thanks to built-in LED lamp
● All-metal Gearing and impact-resistant, glass-fibre-reinforced
casing
● Intelligent electrical components guarantee longest system life

Order Now

Package contents
Inserts HSS Co Item Number
3MM MP10 3553369
6MM MP10 3553370
6.5MM MP10 3579336
1 - 13MM Kit 3579337
3MM MP10 3553371
6MM MP10 3553372
SF 14-A Body
6.5MM MP10 3579338
1 - 13MM Kit 3579339
3MM MP10 3553373
6MM MP10 3553374
6.5MM MP10 3579340
1 - 13MM Kit 3579341

Please visit Hilti website for the latest item numbers and related products

Hilti online: www.hilti.com.hk
48
