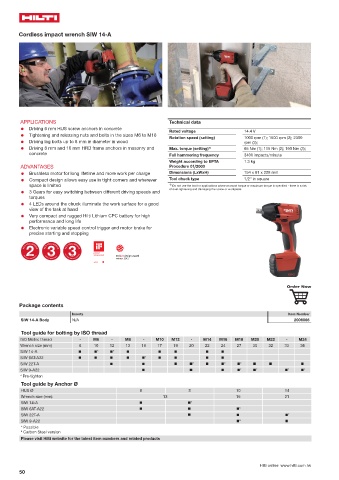

Page 52 - Hilti (HK) – Product Catalogue

Cordless impact wrench SIW 14-A

APPLICATIONS Technical data
● Driving 6 mm HUS screw anchors in concrete
Rated voltage 14.4 V
● Tightening and releasing nuts and bolts in the sizes M6 to M16
Rotation speed (setting) 1000 rpm (1); 1500 rpm (2); 2300
● Driving lag bolts up to 8 mm in diameter in wood rpm (3);
● Driving 8 mm and 10 mm HRD frame anchors in masonry and Max. torque (setting) 1) 65 Nm (1); 115 Nm (2); 160 Nm (3);
concrete Full hammering frequency 3400 impacts/minute
Weight according to EPTA 1.3 kg
ADVANTAGES Procedure 01/2003
● Brushless motor for long lifetime and more work per charge Dimensions (LxWxH) 154 x 81 x 228 mm
● Compact design allows easy use in tight corners and wherever Tool chuck type 1/2" in square
space is limited 1) Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk
of over-tightening and damaging the screw or workpiece.
● 3 Gears for easy switching between different driving speeds and
torques
● 4 LEDs around the chuck illuminate the work surface for a good
view of the task at hand
● Very compact and rugged Hilti Lithium CPC battery for high
performance and long life
● Electronic variable speed control trigger and motor brake for
precise starting and stopping

Order Now

Package contents

Inserts Item Number
SIW 14-A Body N/A 2006066

ISO Metric thread - M6 - M8 - M10 M12 - M14 M16 M18 M20 M22 - M24
Wrench size (mm) 8 10 12 13 16 17 19 20 22 24 27 30 32 33 36
SIW 14-A * *
SIW 6AT-A22 *
SIW 22T-A * * *
SIW 9-A22 * * * *
* Pre-tighten

HUS Ø 6 8 10 14
Wrench size (mm) 13 15 21
SIW 14-A *
SIW 6AT-A22 *
SIW 22T-A *
SIW 9-A22 #
* Possible
Carbon Steel version
#
Please visit Hilti website for the latest item numbers and related products
