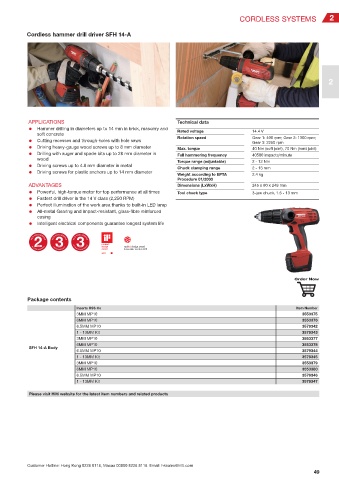

Page 51 - Hilti (HK) – Product Catalogue

CORDLESS SYSTEMS 2

Cordless hammer drill driver SFH 14-A

2

APPLICATIONS Technical data
● Hammer drilling in diameters up to 14 mm in brick, masonry and
Rated voltage 14.4 V
soft concrete
Rotation speed Gear 1: 400 rpm; Gear 2: 1300 rpm;
● Cutting recesses and through-holes with hole saws
Gear 3: 2250 rpm
● Driving heavy-gauge wood screws up to 8 mm diameter Max. torque 40 Nm (soft joint), 70 Nm (hard joint)
● Drilling with auger and spade bits up to 28 mm diameter in Full hammering frequency 40500 impacts/minute
wood
Torque range (adjustable) 2 - 12 Nm
● Driving screws up to 4.8 mm diameter in metal
Chuck clamping range 2 - 13 mm
● Driving screws for plastic anchors up to 14 mm diameter
Weight according to EPTA 2.4 kg
Procedure 01/2003
ADVANTAGES Dimensions (LxWxH) 245 x 80 x 249 mm
● Powerful, high-torque motor for top performance at all times Tool chuck type 3-jaw chuck, 1.5 - 13 mm
● Fastest drill driver in the 14 V class (2,250 RPM)
● Perfect illumination of the work area thanks to built-in LED lamp
● All-metal Gearing and impact-resistant, glass-fibre reinforced
casing
● Intelligent electrical components guarantee longest system life

Order Now

Package contents
Inserts HSS Co Item Number
3MM MP10 3553375
6MM MP10 3553376
6.5MM MP10 3579342
1 - 13MM Kit 3579343
3MM MP10 3553377
6MM MP10 3553378
SFH 14-A Body
6.5MM MP10 3579344
1 - 13MM Kit 3579345
3MM MP10 3553379
6MM MP10 3553380
6.5MM MP10 3579346
1 - 13MM Kit 3579347

Please visit Hilti website for the latest item numbers and related products

Customer Hotline: Hong Kong 8228 8118, Macau 00800 8228 8118 Email: hksales@hilti.com
49
