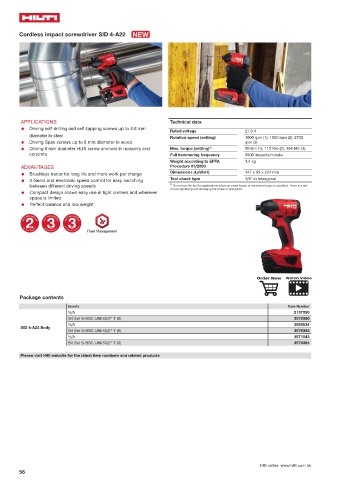

Page 58 - Hilti (HK) – Product Catalogue

Cordless impact screwdriver SID 4-A22

APPLICATIONS Technical data
● Driving self-drilling and self-tapping screws up to 4.8 mm
Rated voltage 21.6 V
diameter in steel
Rotation speed (setting) 1000 rpm (1); 1500 rpm (2); 2700
● Driving Spax screws up to 8 mm diameter in wood rpm (3)
● Driving 6 mm diameter HUS screw anchors in masonry and Max. torque (setting) 1) 60 Nm (1); 110 Nm (2); 194 Nm (3)
concrete Full hammering frequency 3500 impacts/minute
Weight according to EPTA 1.4 kg
ADVANTAGES Procedure 01/2003
Dimensions (LxWxH) 147 x 93 x 224 mm
● Brushless motor for long life and more work per charge
Tool chuck type 1/4" in hexagonal
● 3 Gears and electronic speed control for easy switching
between different driving speeds 1) Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk
of over-tightening and damaging the screw or workpiece.
● Compact design allows easy use in tight corners and wherever
space is limited
● Perfect balance and low weight

Order Now Watch Video

Package contents
Inserts Item Number
N/A 2137090
Bit Set S-BSC UNI 50/2" T (6) 3579380
N/A 3558534
SID 4-A22 Body
Bit Set S-BSC UNI 50/2" T (6) 3579382
N/A 3571043
Bit Set S-BSC UNI 50/2" T (6) 3579384

Please visit Hilti website for the latest item numbers and related products
