CORDLESS SYSTEMS 2

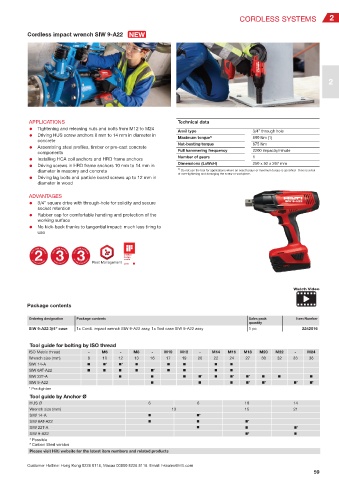

Cordless impact wrench SIW 9-A22

2

APPLICATIONS Technical data
● Tightening and releasing nuts and bolts from M12 to M24
Anvil type 3/4” through hole
● Driving HUS screw anchors 8 mm to 14 mm in diameter in
Maximum torque 1) 800 Nm (1)
concrete
Nut-busting torque 875 Nm
● Assembling steel profiles, timber or pre-cast concrete
Full hammering frequency 2200 impacts/minute
components
Number of gears 1
● Installing HCA coil anchors and HRD frame anchors
Dimensions (LxWxH) 250 x 92 x 267 mm
● Driving screws in HRD frame anchors 10 mm to 14 mm in
1)
diameter in masonry and concrete Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk
of over-tightening and damaging the screw or workpiece.
● Driving lag bolts and particle board screws up to 12 mm in
diameter in wood
ADVANTAGES
● 3/4” square drive with through-hole for solidity and secure
socket retention
● Rubber cap for comfortable handling and protection of the
working surface
● No kick-back thanks to tangential impact: much less tiring to
use

Watch Video

Package contents

Ordering designation Package contents Sales pack Item Number
quantity
SIW 9-A22 3/4” case 1x Cordl. impact wrench SIW 9-A22 assy, 1x Tool case SIW 9-A22 assy 1 pc 2242016

ISO Metric thread - M6 - M8 - M10 M12 - M14 M16 M18 M20 M22 - M24
Wrench size (mm) 8 10 12 13 16 17 19 20 22 24 27 30 32 33 36
SIW 14-A * *
SIW 6AT-A22 *
SIW 22T-A * * *
SIW 9-A22 * * * *
* Pre-tighten

HUS Ø 6 8 10 14
Wrench size (mm) 13 15 21
SIW 14-A *
SIW 6AT-A22 *
SIW 22T-A *
SIW 9-A22 #
* Possible
Carbon Steel version
#
Please visit Hilti website for the latest item numbers and related products
