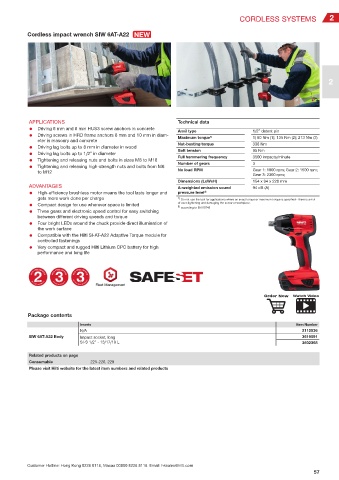

Page 59 - Hilti (HK) – Product Catalogue

CORDLESS SYSTEMS 2

Cordless impact wrench SIW 6AT-A22

2

APPLICATIONS Technical data
● Driving 6 mm and 8 mm HUS3 screw anchors in concrete
Anvil type 1/2” detent pin
● Driving screws in HRD frame anchors 8 mm and 10 mm in diam-
Maximum torque 1) 1) 90 Nm (1); 135 Nm (2); 213 Nm (3)
eter in masonry and concrete
Nut-busting torque 338 Nm
● Driving lag bolts up to 8 mm in diameter in wood
Bolt tension 95 Nm
● Driving lag bolts up to 1/2” in diameter
Full hammering frequency 3500 impacts/minute
● Tightening and releasing nuts and bolts in sizes M8 to M16
Number of gears 3
● Tightening and releasing high-strength nuts and bolts from M6
No load RPM Gear 1: 1000 rpm; Gear 2: 1500 rpm;
to M12
Gear 3: 2300 rpm;
Dimensions (LxWxH) 154 x 94 x 228 mm
ADVANTAGES A-weighted emission sound 94 dB (A)
● High-efficiency brushless motor means the tool lasts longer and pressure level 2)
gets more work done per charge 1) Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk
of over-tightening and damaging the screw or workpiece.
● Compact design for use wherever space is limited
2)
according to EN 60745
● Three gears and electronic speed control for easy switching
between different driving speeds and torque
● Four bright LEDs around the chuck provide direct illumination of
the work surface
● Compatible with the Hilti SI-AT-A22 Adaptive Torque module for
controlled fastenings
● Very compact and rugged Hilti Lithium CPC battery for high
performance and long life

Order Now Watch Video

Package contents
Inserts Item Number
N/A 2112536
SIW 6AT-A22 Body Impact socket, long 3619091
SI-S 1/2” - 13/17/19 L 3602368

Related products on page
Consumable 225-226, 229
Please visit Hilti website for the latest item numbers and related products

Customer Hotline: Hong Kong 8228 8118, Macau 00800 8228 8118 Email: hksales@hilti.com
57
