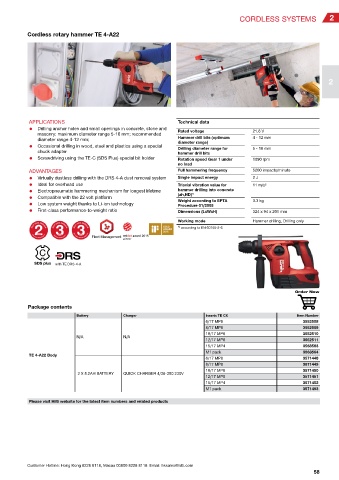

Page 28 - Hilti (HK) – Product Catalogue

CORDLESS SYSTEMS 2

Cordless rotary hammer TE 4-A22

2

APPLICATIONS Technical data
● Drilling anchor holes and small openings in concrete, stone and
Rated voltage 21.6 V
masonry: maximum diameter range 5-16 mm; recommended
Hammer drill bits (optimum 4 - 12 mm
diameter range 4-12 mm;
diameter range)
● Occasional drilling in wood, steel and plastics using a special
Drilling diameter range for 5 - 16 mm
chuck adapter
hammer drill bits
● Screwdriving using the TE-C (SDS Plus) special bit holder Rotation speed Gear 1 under 1090 rpm
no load
ADVANTAGES Full hammering frequency 5200 impacts/minute
● Virtually dustless drilling with the DRS 4-A dust removal system Single impact energy 2 J
● Ideal for overhead use Triaxial vibration value for 11 m/s²
● Electropneumatic hammering mechanism for longest lifetime hammer drilling into concrete
(ah,HD) 1)
● Compatible with the 22 volt platform
Weight according to EPTA 3.3 kg
● Low system weight thanks to Li-ion technology
Procedure 01/2003
● First-class performance-to-weight ratio Dimensions (LxWxH) 324 x 94 x 201 mm
Working mode Hammer drilling, Drilling only
1) according to EN 60745-2-6

with TE DRS-4-A

Order Now

Package contents
Battery Charger Inserts TE CX Item Number
6/17 MP8 3552508
8/17 MP8 3552509
10/17 MP8 3552510
N/A N/A
12/17 MP8 3552511
15/17 MP4 3568563
M1 pack 3568564
TE 4-A22 Body
6/17 MP8 3571448
8/17 MP8 3571449
10/17 MP8 3571450
2 X 5.2AH BATTERY QUICK CHARGER 4/36-350 230V
12/17 MP8 3571451
15/17 MP4 3571452
M1 pack 3571493

Please visit Hilti website for the latest item numbers and related products
