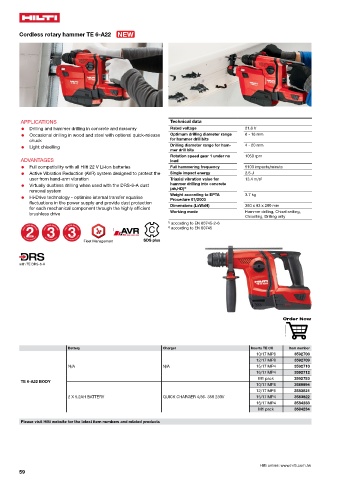

Page 29 - Hilti (HK) – Product Catalogue

Cordless rotary hammer TE 6-A22

APPLICATIONS Technical data
● Drilling and hammer drilling in concrete and masonry Rated voltage 21.6 V
● Occasional drilling in wood and steel with optional quick-release Optimum drilling diameter range 6 - 16 mm
for hammer drill bits
chuck
Drilling diameter range for ham- 4 - 20 mm
● Light chiselling
mer drill bits
Rotation speed gear 1 under no 1050 rpm
ADVANTAGES load
● Full compatibility with all Hilti 22 V Li-ion batteries Full hammering frequency 5100 impacts/minute
● Active Vibration Reduction (AVR) system designed to protect the Single impact energy 2.5 J
user from hand-arm vibration Triaxial vibration value for 13.4 m/s²
● Virtually dustless drilling when used with the DRS-6-A dust hammer drilling into concrete
(ah,HD) 1)
removal system
Weight according to EPTA 3.7 kg
● Hi-Drive technology - optimise internal transfer equalise
Procedure 01/2003
fluctuations in the power supply and provide dust protection
Dimensions (LxWxH) 360 x 93 x 200 mm
for each mechanical component through the highly efficient
Working mode Hammer drilling, Chisel setting,
brushless drive
Chiselling, Drilling only
according to EN 60745-2-6
1)
2) according to EN 60745

with TE DRS-6-A

Order Now

Battery Charger Inserts TE CX Item number
10/17 MP8 3592708
12/17 MP8 3592709
N/A N/A 15/17 MP4 3592710
16/17 MP4 3592712
M1 pack 3592753
TE 6-A22 BODY
10/17 MP8 3589894
12/17 MP8 3583821
2 X 5.2AH BATTERY QUICK CHARGER 4/36- 350 230V 15/17 MP4 3583822
16/17 MP4 3584233
M1 pack 3584234

Please visit Hilti website for the latest item numbers and related products
