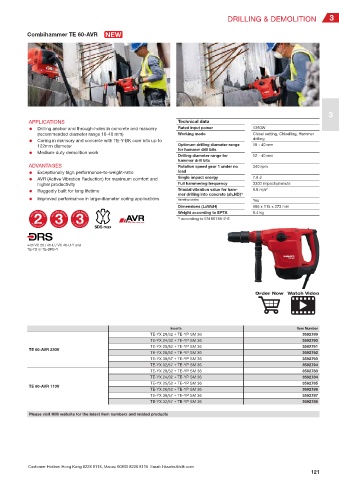

Page 123 - Hilti (HK) – Product Catalogue

DRILLING & DEMOLITION 3

Combihammer TE 60-AVR

3
APPLICATIONS Technical data
● Drilling anchor and through-holes in concrete and masonry Rated input power 1350W
(recommended diameter range 18-40 mm) Working mode Chisel setting, Chiselling, Hammer
drilling
● Coring in mansory and concrete with TE-Y-BK core bits up to
122mm diameter Optimum drilling diameter range 18 - 40 mm
for hammer drill bits
● Medium-duty demolition work
Drilling diameter range for 12 - 40 mm
hammer drill bits
ADVANTAGES Rotation speed gear 1 under no 340 rpm
● Exceptionally high performance-to-weight-ratio load
Single impact energy 7.8 J
● AVR (Active Vibration Reduction) for maximum comfort and
higher productivity Full hammering frequency 3300 impacts/minute
● Ruggedly built for long lifetime Triaxial vibration value for ham- 9.6 m/s²
mer drilling into concrete (ah,HD) 1)
● Improved performance in large-diameter coring applications
Yes
Chiselling function
Dimensions (LxWxH) 486 x 115 x 273 mm
Weight according to EPTA 6.4 kg
1)
according to EN 60745-2-6

with VC 20 / 40-U / VC 40-U-Y and
TE-YD or TE-DRS-Y

Order Now Watch Video

Inserts Item Number
TE-YX 20/32 + TE-YP SM 36 3592789
TE-YX 24/32 + TE-YP SM 36 3592790
TE-YX 25/52 + TE-YP SM 36 3592791
TE 60-AVR 230V
TE-YX 28/52 + TE-YP SM 36 3592792
TE-YX 30/57 + TE-YP SM 36 3592793
TE-YX 32/57 + TE-YP SM 36 3592794
TE-YX 20/32 + TE-YP SM 36 3592783
TE-YX 24/32 + TE-YP SM 36 3592784
TE-YX 25/52 + TE-YP SM 36 3592785
TE 60-AVR 110V
TE-YX 28/52 + TE-YP SM 36 3592786
TE-YX 30/57 + TE-YP SM 36 3592787
TE-YX 32/57 + TE-YP SM 36 3592788
Please visit Hilti website for the latest item numbers and related products

Customer Hotline: Hong Kong 8228 8118, Macau 00800 8228 8118 Email: hksales@hilti.com
121
