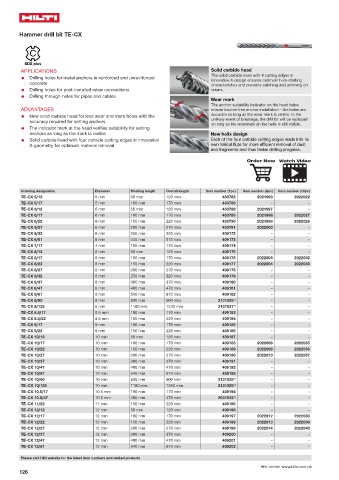

Page 128 - Hilti (HK) – Product Catalogue

Hammer drill bit TE-CX

APPLICATIONS Solid carbide head
The solid carbide head with 4 cutting edges in
● Drilling holes for metal anchors in reinforced and unreinforced
innovative X-design ensures optimum hole-starting
concrete characteristics and prevents catching and jamming on
● Drilling holes for post-installed rebar connections rebars.
● Drilling through-holes for pipes and cables
Wear mark
The anchor suitability indicator on the head helps
ADVANTAGES ensure trouble-free anchor installation – the holes are
accurate so long as the wear mark is visible. In the
● New solid carbide head for less wear and more holes with the
unlikely event of breakage, the drill bit will be replaced
accuracy required for setting anchors
so long as the wearmark on the helix is still visible.
● The indicator mark at the head verifies suitability for setting
anchors as long as the mark is visible New helix design
● Solid carbide head with four carbide cutting edges in innovative Each of the four carbide cutting edges leads into its
X-geometry for optimum material removal own helical for more removal of dust
and fragments and thus faster drilling progress.
Order Now Watch Video

Ordering designation Diameter Working length Overall length Item number (1pc) Item number (8pc) Item number (16pc)
TE-CX 5/12 5 mm 50 mm 120 mm 433782 2021990 2022022
TE-CX 5/17 5 mm 100 mm 170 mm 433786 - -
TE-CX 6/12 6 mm 50 mm 120 mm 433788 2021997 -
TE-CX 6/17 6 mm 100 mm 170 mm 433789 2021998 2022027
TE-CX 6/22 6 mm 150 mm 220 mm 433790 2021999 2022028
TE-CX 6/27 6 mm 200 mm 270 mm 433791 2022000 -
TE-CX 6/32 6 mm 250 mm 320 mm 409172 - -
TE-CX 6/51 6 mm 440 mm 510 mm 409173 - -
TE-CX 7/17 7 mm 100 mm 170 mm 409174 - -
TE-CX 8/12 8 mm 50 mm 120 mm 409175 - -
TE-CX 8/17 8 mm 100 mm 170 mm 409176 2022003 2022032
TE-CX 8/22 8 mm 150 mm 220 mm 409177 2022004 2022033
TE-CX 8/27 8 mm 200 mm 270 mm 409178 - -
TE-CX 8/32 8 mm 250 mm 320 mm 409179 - -
TE-CX 8/37 8 mm 300 mm 370 mm 409180 - -
TE-CX 8/47 8 mm 400 mm 470 mm 409181 - -
TE-CX 8/61 8 mm 540 mm 610 mm 409182 - -
TE-CX 8/90 8 mm 830 mm 900 mm 2131026 1) - -
TE-CX 8/123 8 mm 1160 mm 1230 mm 2131027 1) - -
TE-CX 8.5/17 8.5 mm 100 mm 170 mm 409183 - -
TE-CX 8.5/22 8.5 mm 150 mm 220 mm 409184 - -
TE-CX 9/17 9 mm 100 mm 170 mm 409185 - -
TE-CX 9/22 9 mm 150 mm 220 mm 409186 - -
TE-CX 10/12 10 mm 50 mm 120 mm 409187 - -
TE-CX 10/17 10 mm 100 mm 170 mm 409188 2022008 2022035
TE-CX 10/22 10 mm 150 mm 220 mm 409189 2022009 2022036
TE-CX 10/27 10 mm 200 mm 270 mm 409190 2022010 2022037
TE-CX 10/37 10 mm 300 mm 370 mm 409191 - -
TE-CX 10/47 10 mm 400 mm 470 mm 409192 - -
TE-CX 10/61 10 mm 540 mm 610 mm 409193 - -
TE-CX 10/90 10 mm 830 mm 900 mm 2131028 1) - -
TE-CX 10/125 10 mm 1180 mm 1250 mm 2131029 1) - -
TE-CX 10.5/17 10.5 mm 100 mm 170 mm 409194 - -
TE-CX 10.5/47 10.5 mm 400 mm 470 mm 2031533 1) - -
TE-CX 11/22 11 mm 150 mm 220 mm 409195 - -
TE-CX 12/12 12 mm 50 mm 120 mm 409196 - -
TE-CX 12/17 12 mm 100 mm 170 mm 409197 2022012 2022038
TE-CX 12/22 12 mm 150 mm 220 mm 409198 2022013 2022039
TE-CX 12/27 12 mm 200 mm 270 mm 409199 2022014 2022040
TE-CX 12/37 12 mm 300 mm 370 mm 409200 - -
TE-CX 12/47 12 mm 400 mm 470 mm 409201 - -
TE-CX 12/61 12 mm 540 mm 610 mm 409202 - -
Please visit Hilti website for the latest item numbers and related products
