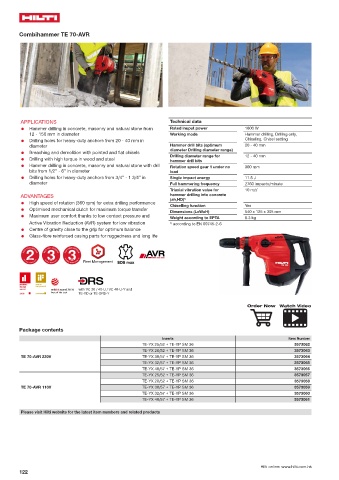

Combihammer TE 70-AVR

APPLICATIONS Technical data
● Hammer drilling in concrete, masonry and natural stone from Rated inuput power 1800 W
12 - 150 mm in diameter Working mode Hammer drilling, Drilling only,
Chiseling, Chisel setting
● Drilling holes for heavy-duty anchors from 20 - 40 mm in
diameter Hammer drill bits (optimum 20 - 40 mm
diameter Drilling diameter range)
● Breaching and demolition with pointed and flat chisels
Drilling diameter range for 12 - 40 mm
● Drilling with high torque in wood and steel hammer drill bits
● Hammer drilling in concrete, masonry and natural stone with drill Rotation speed gear 1 under no 360 rpm
bits from 1/2” - 6” in diameter load
● Drilling holes for heavy-duty anchors from 3/4” - 1 3/4” in Single impact energy 11.5 J
diameter Full hammering frequency 2760 impacts/minute
Triaxial vibration value for 10 m/s ²
ADVANTAGES hammer drilling into concrete
(ah,HD) 1)
● High speed of rotation (360 rpm) for extra drilling performance
Chiselling function Yes
● Optimised mechanical clutch for maximum torque transfer
Dimensions (LxWxH) 540 x 125 x 305 mm
● Maximum user comfort thanks to low contact pressure and
Weight according to EPTA 8.3 kg
Active Vibration Reduction (AVR) system for low vibration 1) according to EN 60745-2-6
● Centre of gravity close to the grip for optimum balance
● Glass-fibre reinforced casing parts for ruggedness and long life

with VC 20 / 40-U / VC 40-U-Y and
TE-YD or TE-DRS-Y

Order Now Watch Video

Package contents
Inserts Item Number
TE-YX 25/52 + TE-YP SM 36 3573062
TE-YX 28/52 + TE-YP SM 36 3573063
TE 70-AVR 230V TE-YX 30/57 + TE-YP SM 36 3573064
TE-YX 32/57 + TE-YP SM 36 3573065
TE-YX 40/57 + TE-YP SM 36 3573066
TE-YX 25/52 + TE-YP SM 36 3573057
TE-YX 28/52 + TE-YP SM 36 3573058
TE 70-AVR 110V TE-YX 30/57 + TE-YP SM 36 3573059
TE-YX 32/57 + TE-YP SM 36 3573060
TE-YX 40/57 + TE-YP SM 36 3573061

Please visit Hilti website for the latest item numbers and related products

Hilti online: www.hilti.com.hk
122
