DRILLING & DEMOLITION 3

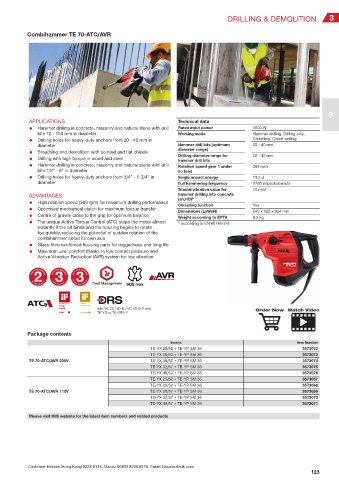

Combihammer TE 70-ATC/AVR

3
APPLICATIONS Technical data
● Hammer drilling in concrete, masonry and natural stone with drill Rated input power 1800 W
bits 12 - 150 mm in diameter Working mode Hammer drilling, Drilling only,
● Drilling holes for heavy-duty anchors from 20 - 40 mm in Chiselling, Chisel setting
diameter Hammer drill bits (optimum 20 - 40 mm
diameter range)
● Breaching and demolition with pointed and flat chisels
Drilling diameter range for 12 - 40 mm
● Drilling with high torque in wood and steel
hammer drill bits
● Hammer drilling in concrete, masonry and natural stone with drill Rotation speed gear 1 under 360 rpm
bits 1/2” - 6” in diameter no load
● Drilling holes for heavy-duty anchors from 3/4” - 1-3/4” in Single impact energy 11.5 J
diameter Full hammering frequency 2760 impacts/minute
Triaxial vibration value for 10 m/s²
ADVANTAGES hammer drilling into concrete
(ah,HD) 1)
● High rotation speed (360 rpm) for maximum drilling performance
Chiselling function Yes
● Optimised mechanical clutch for maximum torque transfer
Dimensions (LxWxH) 540 x 125 x 324 mm
● Centre of gravity close to the grip for optimum balance
Weight according to EPTA 9.5 kg
● The unique Active Torque Control (ATC) stops the motor almost 1) according to EN 60745-2-6
instantly if the bit binds and the housing begins to rotate
too quickly, reducing the potential of sudden rotation of the
combihammer about its own axis
● Glass-fibre reinforced housing parts for ruggedness and long life
● Maximum user comfort thanks to low contact pressure and
Active Vibration Reduction (AVR) system for low vibration

with VC 20 / 40-U / VC 40-U-Y and Order Now Watch Video
TE-YD or TE-DRS-Y

Package contents
Inserts Item Number
TE-YX 25/52 + TE-YP SM 36 3573072
TE-YX 28/52 + TE-YP SM 36 3573073
TE 70-ATC/AVR 230V TE-YX 30/57 + TE-YP SM 36 3573074
TE-YX 32/57 + TE-YP SM 36 3573075
TE-YX 40/57 + TE-YP SM 36 3573076
TE-YX 25/52 + TE-YP SM 36 3573067
TE-YX 28/52 + TE-YP SM 36 3573068
TE 70-ATC/AVR 110V TE-YX 30/57 + TE-YP SM 36 3573069
TE-YX 32/57 + TE-YP SM 36 3573070
TE-YX 40/57 + TE-YP SM 36 3573071

Please visit Hilti website for the latest item numbers and related products
