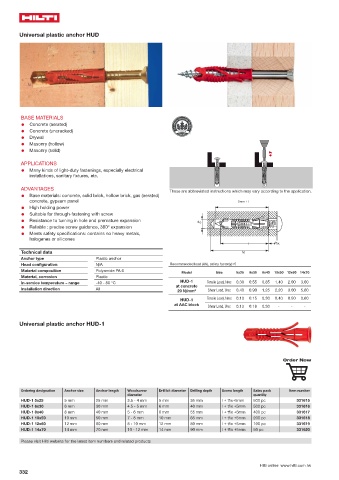

Page 334 - Hilti (HK) – Product Catalogue

Universal plastic anchor HUD

BASE MATERIALS
● Concrete (aerated)
● Concrete (uncracked)
● Drywall
● Masonry (hollow)
● Masonry (solid)

APPLICATIONS
● Many kinds of light-duty fastenings, especially electrical
installations, sanitary fixtures, etc.

ADVANTAGES
These are abbreviated instructions which may vary according to the application.
● Base materials: concrete, solid brick, hollow brick, gas (aerated)
concrete, gypsum panel 5mm + l
● High holding power
● Suitable for through-fastening with screw
● Resistance to turning in hole and premature expansion
d o
● Reliable : precise screw guidance, 360° expansion
● Meets safety specifications: contains no heavy metals,
halogenes or silicones
l t fix
Technical data h 1
Anchor type Plastic anchor
Head configuration N/A Recommended load (kN), safety factor(γ)=5
Material composition Polyamide PA 6
Model Size 5x25 6x30 8x40 10x50 12x60 14x70
Material, corrosion Plastic
In-service temperature – range -40 - 80 °C HUD-1 Tensile Load, Nrec 0.30 0.55 0.85 1.40 2.00 3.00
at concrete
Installation direction All
20 N/mm 2 Shear Load, Vrec 0.40 0.90 1.25 2.20 3.00 5.60
Tensile Load, Nrec 0.10 0.15 0.30 0.40 0.50 0.60
HUD-1
at AAC block
Shear Load, Vrec 0.13 0.18 0.30 - - -
Universal plastic anchor HUD-1

Order Now

Ordering designation Anchor size Anchor length Woodscrew Drill bit diameter Drilling depth Screw length Sales pack Item number
diameter quantity
HUD-1 5x25 5 mm 25 mm 3.5 - 4 mm 5 mm 35 mm I + tfix+5mm 500 pc 331615
HUD-1 6x30 6 mm 30 mm 4.5 - 5 mm 6 mm 40 mm I + tfix +5mm 500 pc 331616
HUD-1 8x40 8 mm 40 mm 5 - 6 mm 8 mm 55 mm I + tfix +5mm 400 pc 331617
HUD-1 10x50 10 mm 50 mm 7 - 8 mm 10 mm 65 mm I + tfix +5mm 200 pc 331618
HUD-1 12x60 12 mm 60 mm 8 - 10 mm 12 mm 80 mm I + tfix +5mm 100 pc 331619
HUD-1 14x70 14 mm 70 mm 10 - 12 mm 14 mm 90 mm I + tfix +5mm 50 pc 331620
Please visit Hilti website for the latest item numbers and related products
