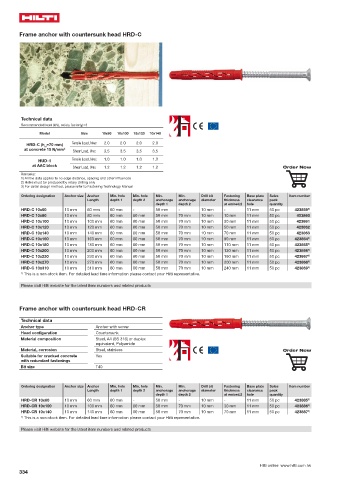

Page 336 - Hilti (HK) – Product Catalogue

Frame anchor with countersunk head HRD-C

Technical data
Recommended load (kN), safety factor(γ)=3
Model Size 10x80 10x100 10x120 10x140
Tensile Load, Nrec 2.0 2.0 2.0 2.0
HRD-C (h =70 mm)
ef
at concrete 15 N/mm 2
Shear Load, Vrec 3.5 3.5 3.5 3.5
HUD-1 Tensile Load, Nrec 1.0 1.0 1.0 1.0
at AAC block
Shear Load, Vrec 1.2 1.2 1.2 1.2 Order Now
Remarks:
1) All the data applies to no edge distance, spacing and other influences
2) Holes must be produced by rotary drilling only
3) For detail design method, please refer to Fastening Technology Manual
Ordering designation Anchor size Anchor Min. hole Min. hole Min. Min. Drill bit Fastening Base plate Sales Item number
Length depth 1 depth 2 anchorage anchorage diameter thickness clearance pack
depth 1 depth 2 at embed.2 hole quantity
HRD-C 10x60 10 mm 60 mm 60 mm - 50 mm - 10 mm - 11 mm 50 pc 423859 1)
HRD-C 10x80 10 mm 80 mm 60 mm 80 mm 50 mm 70 mm 10 mm 10 mm 11 mm 50 pc 423860
HRD-C 10x100 10 mm 100 mm 60 mm 80 mm 50 mm 70 mm 10 mm 30 mm 11 mm 50 pc 423861
HRD-C 10x120 10 mm 120 mm 60 mm 80 mm 50 mm 70 mm 10 mm 50 mm 11 mm 50 pc 423862
HRD-C 10x140 10 mm 140 mm 60 mm 80 mm 50 mm 70 mm 10 mm 70 mm 11 mm 50 pc 423863
HRD-C 10x160 10 mm 160 mm 60 mm 80 mm 50 mm 70 mm 10 mm 90 mm 11 mm 50 pc 423864 1)
HRD-C 10x180 10 mm 180 mm 60 mm 80 mm 50 mm 70 mm 10 mm 110 mm 11 mm 50 pc 423865 1)
HRD-C 10x200 10 mm 200 mm 60 mm 80 mm 50 mm 70 mm 10 mm 130 mm 11 mm 50 pc 423866 1)
HRD-C 10x230 10 mm 230 mm 60 mm 80 mm 50 mm 70 mm 10 mm 160 mm 11 mm 50 pc 423867 1)
HRD-C 10x270 10 mm 270 mm 60 mm 80 mm 50 mm 70 mm 10 mm 200 mm 11 mm 50 pc 423868 1)
HRD-C 10x310 10 mm 310 mm 60 mm 80 mm 50 mm 70 mm 10 mm 240 mm 11 mm 50 pc 423869 1)
1)
This is a non-stock item. For detailed lead time information please contact your Hilti representative.
Please visit Hilti website for the latest item numbers and related products

Frame anchor with countersunk head HRD-CR

Technical data
Anchor type Anchor with screw
Head configuration Countersunk
Material composition Steel, A4 (SS 316) or duplex
equivalent, Polyamide
Material, corrosion Steel, stainless Order Now
Suitable for cracked concrete Yes
with redundant fastenings
Bit size T40

Ordering designation Anchor size Anchor Min. hole Min. hole Min. Min. Drill bit Fastening Base plate Sales Item number
Length depth 1 depth 2 anchorage anchorage diameter thickness clearance pack
depth 1 depth 2 at embed.2 hole quantity
HRD-CR 10x60 10 mm 60 mm 60 mm - 50 mm - 10 mm - 11 mm 50 pc 423885 1)
HRD-CR 10x100 10 mm 100 mm 60 mm 80 mm 50 mm 70 mm 10 mm 30 mm 11 mm 50 pc 423886 1)
HRD-CR 10x140 10 mm 140 mm 60 mm 80 mm 50 mm 70 mm 10 mm 70 mm 11 mm 50 pc 423887 1)
1)
This is a non-stock item. For detailed lead time information please contact your Hilti representative.
Please visit Hilti website for the latest item numbers and related products
