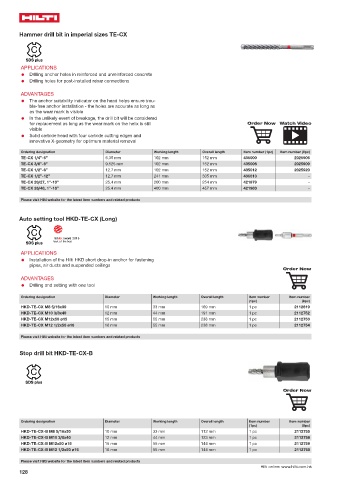

Page 130 - Hilti (HK) – Product Catalogue

Hammer drill bit in imperial sizes TE-CX

APPLICATIONS
● Drilling anchor holes in reinforced and unreinforced concrete
● Drilling holes for post-installed rebar connections

ADVANTAGES
● The anchor suitability indicator on the head helps ensure trou-
ble-free anchor installation - the holes are accurate as long as
as the wear mark is visible
● In the unlikely event of breakage, the drill bit will be considered
for replacement as long as the wear mark on the helix is still Order Now Watch Video
visible
● Solid carbide head with four carbide cutting edges and
innovative X-geometry for optimum material removal
Ordering designation Diameter Working length Overall length Item number (1pc) Item number (8pc)
TE-CX 1/4”-6” 6.35 mm 102 mm 152 mm 435000 2025906
TE-CX 3/8”-6” 9.525 mm 102 mm 152 mm 435006 2025909
TE-CX 1/2”-6” 12.7 mm 102 mm 152 mm 435012 2025920
TE-CX 1/2”-12” 12.7 mm 241 mm 305 mm 435013 -
TE-CX 26/27, 1”-10” 25.4 mm 200 mm 254 mm 421979 -
TE-CX 26/48, 1”-18” 25.4 mm 400 mm 457 mm 421980 -

Please visit Hilti website for the latest item numbers and related products

Auto setting tool HKD-TE-CX (Long)

APPLICATIONS
● Installation of the Hilti HKD short drop-in anchor for fastening
pipes, air ducts and suspended ceilings
Order Now
ADVANTAGES
● Drilling and setting with one tool

Ordering designation Diameter Working length Overall length Item number Item number
(1pc) (8pc)
HKD-TE-CX M8 5/16x30 10 mm 33 mm 169 mm 1 pc 2112619
HKD-TE-CX M10 3/8x40 12 mm 44 mm 191 mm 1 pc 2112752
HKD-TE-CX M12x50 ø15 15 mm 55 mm 238 mm 1 pc 2112753
HKD-TE-CX M12 1/2x50 ø16 16 mm 55 mm 238 mm 1 pc 2112754

Please visit Hilti website for the latest item numbers and related products

Stop drill bit HKD-TE-CX-B

Order Now

Ordering designation Diameter Working length Overall length Item number Item number
(1pc) (8pc)
HKD-TE-CX-B M8 5/16x30 10 mm 33 mm 112 mm 1 pc 2112755
HKD-TE-CX-B M10 3/8x40 12 mm 44 mm 123 mm 1 pc 2112758
HKD-TE-CX-B M12x50 ø15 15 mm 55 mm 144 mm 1 pc 2112759
HKD-TE-CX-B M12 1/2x50 ø16 16 mm 55 mm 144 mm 1 pc 2112760

Please visit Hilti website for the latest item numbers and related products
Hilti online: www.hilti.com.hk
