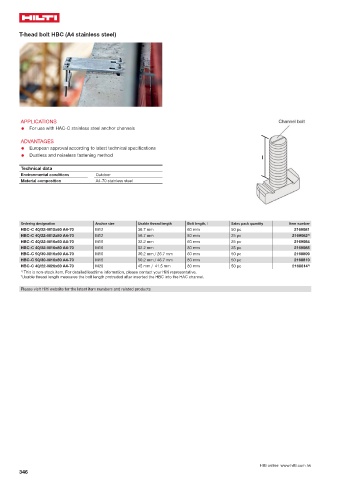

T-head bolt HBC (A4 stainless steel)

APPLICATIONS
● For use with HAC-C stainless steel anchor channels

ADVANTAGES
● European approval according to latest technical specifications
● Dustless and noiseless fastening method
l
Technical data
Environmental conditions Outdoor
Material composition A4-70 stainless steel

Ordering designation Anchor size Usable thread length Bolt length, l Sales pack quantity Item number
HBC-C 40/22-M12x60 A4-70 M12 36.7 mm 60 mm 50 pc 2169081
HBC-C 40/22-M12x80 A4-70 M12 56.7 mm 80 mm 25 pc 2169082 1)
HBC-C 40/22-M16x60 A4-70 M16 32.2 mm 60 mm 25 pc 2169084
HBC-C 40/22-M16x80 A4-70 M16 52.2 mm 80 mm 25 pc 2169085
HBC-C 50/30-M16x60 A4-70 M16 30.2 mm / 26.7 mm 60 mm 50 pc 2168809
HBC-C 50/30-M16x80 A4-70 M16 50.2 mm / 46.7 mm 80 mm 50 pc 2168810
HBC-C 40/22-M20x60 A4-70 M20 45 mm / 41.5 mm 80 mm 50 pc 2168814 1)
1) This is non-stock item. For detailed leadtime information, please contact your Hilti representative.
*Usable thread length measures the bolt length protruded after inserted the HBC into the HAC channel.

Please visit Hilti website for the latest item numbers and related products
