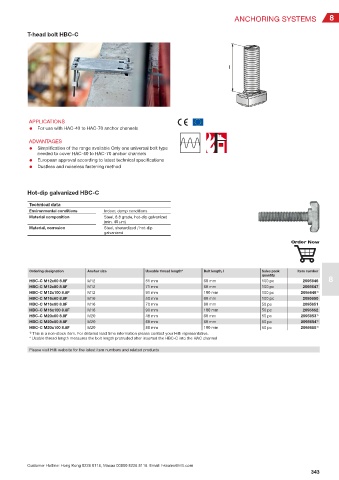

Page 345 - Hilti (HK) – Product Catalogue

ANCHORING SYSTEMS 8

T-head bolt HBC-C

APPLICATIONS
● For use with HAC-40 to HAC-70 anchor channels

ADVANTAGES
● Simplification of the range available Only one universal bolt type
needed to cover HAC-40 to HAC-70 anchor channels
● European approval according to latest technical specifications
● Dustless and noiseless fastening method

Hot-dip galvanized HBC-C
Technical data
Environmental conditions Indoor, damp conditions
Material composition Steel, 8.8 grade, hot-dip galvanized
(min. 45 μm)
Material, corrosion Steel, sherardized / hot-dip
galvanized
Order Now

Ordering designation Anchor size Useable thread length* Bolt length, l Sales pack Item number
quantity
HBC-C M12x60 8.8F M12 51 mm 60 mm 100 pc 2095646 8
HBC-C M12x80 8.8F M12 71 mm 80 mm 100 pc 2095647
HBC-C M12x100 8.8F M12 91 mm 100 mm 100 pc 2095648 1)
HBC-C M16x60 8.8F M16 50 mm 60 mm 100 pc 2095650
HBC-C M16x80 8.8F M16 70 mm 80 mm 50 pc 2095651
HBC-C M16x100 8.8F M16 90 mm 100 mm 50 pc 2095652
HBC-C M20x60 8.8F M20 48 mm 60 mm 50 pc 2095653 1)
HBC-C M20x80 8.8F M20 68 mm 80 mm 50 pc 2095654 1)
HBC-C M20x100 8.8F M20 88 mm 100 mm 50 pc 2095655 1)
1) This is a non-stock item. For detailed lead time information please contact your Hilti representative.
* Usable thread length measures the bolt length protruded after inserted the HBC-C into the HAC channel
Please visit Hilti website for the latest item numbers and related products
