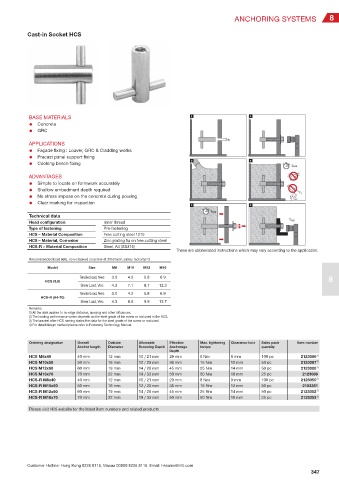

ANCHORING SYSTEMS 8

Cast-in Socket HCS

BASE MATERIALS
● Concrete
● GRC

APPLICATIONS
● Façade fixing : Louver, GRC & Cladding works
● Precast panel support fixing
● Cooking bench fixing
ADVANTAGES
● Simple to locate on formwork accurately
● Shallow embedment depth required
● No stress impose on the concrete during pouring
● Clear marking for inspection

Technical data
Head configuration Inner thread
Type of fastening Pre-fastening
HCS – Material Composition Free cutting steel 1215
HCS – Material, Corrosion Zinc plating 5μ on free cutting steel
HCS-R – Material Composition Steel, A4 (SS316)
These are abbreviated instructions which may vary according to the application.
Recommended load (kN), non-cracked concrete at 25N/mm², safety factor(γ)=3
Model Size M8 M10 M12 M16
Tensile Load, Nrec 3.0 4.2 5.8 6.9 8
HCS (8.8)
Shear Load, Vrec 4.3 7.1 9.7 12.3
Tensile Load, Nrec 3.0 4.2 5.8 6.9
HCS-R (A4-70)
Shear Load, Vrec 4.3 6.8 9.9 13.7
Remarks:
1) All the data applies to no edge distance, spacing and other influences.
2) The loading performance varies depends on the steel grade of the screw or rod used in the HCS.
3) The bracket after HCS naming states the data for the steel grade of the screw or rod used.
4) For detail design method please refer to Fastening Technology Manual.

Ordering designation Overall Outside Allowable Effective Max. tightening Clearance hole Sales pack Item number
Anchor length Diameter Screwing Depth Anchorage torque quantity
Depth
HCS M8x40 40 mm 12 mm 10 / 21 mm 29 mm 8 Nm 9 mm 100 pc 2123086
HCS M10x50 50 mm 16 mm 12 / 23 mm 36 mm 15 Nm 12 mm 50 pc 2123087
HCS M12x60 60 mm 19 mm 14 / 26 mm 45 mm 25 Nm 14 mm 50 pc 2123088
HCS M16x70 70 mm 22 mm 19 / 33 mm 50 mm 50 Nm 18 mm 25 pc 2123089
HCS-R M8x40 40 mm 12 mm 10 / 21 mm 29 mm 8 Nm 9 mm 100 pc 2123350
HCS-R M10x50 50 mm 16 mm 12 / 23 mm 36 mm 15 Nm 12 mm 50 pc 2123351
HCS-R M12x60 60 mm 19 mm 14 / 26 mm 45 mm 25 Nm 14 mm 50 pc 2123352
HCS-R M16x70 70 mm 22 mm 19 / 33 mm 50 mm 50 Nm 18 mm 25 pc 2123353
Please visit Hilti website for the latest item numbers and related products
