ANCHORING SYSTEMS 8

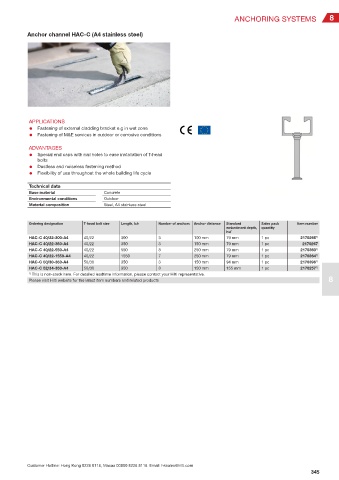

Anchor channel HAC-C (A4 stainless steel)

APPLICATIONS
● Fastening of external cladding bracket e.g in wet zone
● Fastening of M&E services in outdoor or corrosive conditions

ADVANTAGES
● Special end caps with nail holes to ease installation of T-head
bolts
● Dustless and noiseless fastening method
● Flexibility of use throughout the whole building life cycle
Technical data
Base material Concrete
Environmental conditions Outdoor
Material composition Steel, A4 stainless steel

Ordering designation T-head bolt size Length, lch Number of anchors Anchor distance Standard Sales pack Item number
embedment depth, quantity
hef
HAC-C 40/22-300-A4 40/22 300 3 100 mm 79 mm 1 pc 2170266 1)
HAC-C 40/22-350-A4 40/22 350 3 150 mm 79 mm 1 pc 2170267
HAC-C 40/22-550-A4 40/22 550 3 250 mm 79 mm 1 pc 2170360 1)
HAC-C 40/22-1550-A4 40/22 1550 7 250 mm 79 mm 1 pc 2170364 1)
HAC-C 50/30-350-A4 50/30 350 3 150 mm 94 mm 1 pc 2170396 1)
HAC-C 52/34-350-A4 50/30 350 3 150 mm 155 mm 1 pc 2170257 1)
1) This is non-stock item. For detailed leadtime information, please contact your Hilti representative.
Please visit Hilti website for the latest item numbers and related products 8
